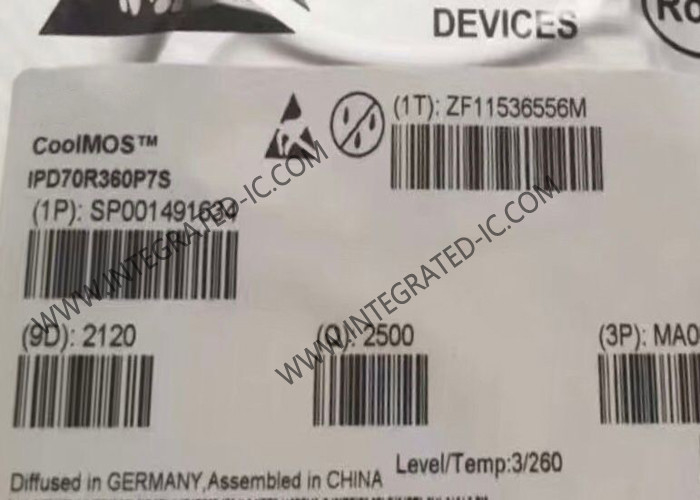

IPD70R360P7S Integrated Circuit Chip CoolMOS™ P7 N-Channel Power MOSFET Transistor
IPD70R360P7S Integrated Circuit Chip CoolMOS™ P7 N-Channel Power MOSFET Transistor
Description
Part Number:
IPD70R360P7S
Drain To Source Voltage (Vdss):
700 V
Current - Continuous Drain (Id) @ 25°C:
12.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On):
10V
Rds On (Max) @ Id, Vgs:
360mOhm @ 3A, 10V
Vgs(th) (Max) @ Id:
3.5V @ 150µA
Highlight:
IPD70R360P7S
,
IPD70R360P7S Integrated Circuit Chip
,
N-Channel Power MOSFET Transistor
IPD70R360P7S Integrated Circuit Chip CoolMOS™ P7 N-Channel Power MOSFET Transistor
Product DescriptionOf IPD70R360P7S
IPD70R360P7S is 700V CoolMOS™ P7 N-Channel Power MOSFET Transistor.
Specification Of IPD70R360P7S
N-Channel
1 Channel
700 V
12.5 A
300 mOhms
- 16 V, + 16 V
2.5 V
16.4 nC
- 40 C
+ 150 C
59.5 W
Configuration:
Single
Fall Time:
18 ns
Height:
2.3 mm
Length:
6.5 mm
Moisture Sensitive:
Yes
Product Type:
MOSFETs
Rise Time:
8 ns
Typical Turn-Off Delay Time:
100 ns
Typical Turn-On Delay Time:
19 ns
Width:
6.22 mm
Unit Weight:
330 mg
Feature Of IPD70R360P7S
Extremely low FOM R DS(on) x E oss; lower Q g, E on and E off
Highly performant technology
Low switching losses (E oss)
Highly efficient
Excellent thermal behavior
Allowing high speed switching
Integrated protection Zener diode
Optimized V (GS)th of 3V with very narrow tolerance of ±0.5V
Finely graduated portfolio
Benefits Of IPD70R360P7S
Cost competitive technology
Up to 2.4% efficiency gain and 12K lower device temperature compared to C6 technology
Further efficiency gain at higher switching speed
Supporting less magnetic size with lower BOM costs
High ESD ruggedness up to HBM Class 2 level
Easy to drive and design-in
Enabler for smaller form factors and high power density designs
Excellent choice in selecting the best fitting product
Application Of IPD70R360P7S
Charger
Adapter
TV
Lighting
Audio
Aux power
DIN rail power supplies
Industrial robots system solutions for Industry 4.0
LED strips and signage
Uninterruptible power supplies (UPS)
