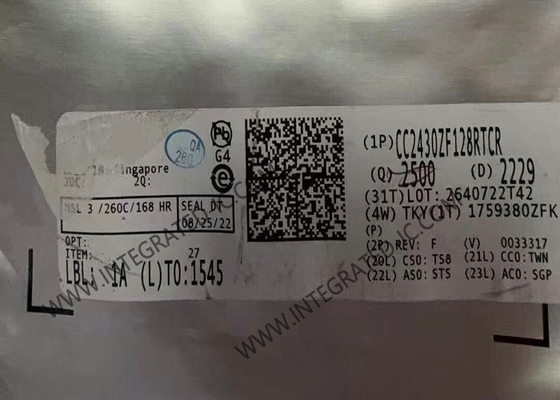

CC2430ZF128RTCR Wireless Communication Module System-on-Chip For 2.4 GHz IEEE 802.15.4 / ZigBee™
CC2430ZF128RTCR Wireless Communication Module System-on-Chip For 2.4 GHz IEEE 802.15.4 / ZigBee™
Description
Part Number:
CC2430ZF128RTCR
Operating Frequency::
2.4 GHz
Maximum Data Rate::
250 Kbps
Output Power::
0 DBm
Sensitivity::
- 92 DBm
Supply Voltage - Min::
2 V
Highlight:
CC2430ZF128RTCR
,
CC2430ZF128RTCR Wireless Communication Module
,
System-on-Chip
CC2430ZF128RTCR Wireless Communication Module System-on-Chip For 2.4 GHz IEEE 802.15.4 / ZigBee™
Product Description Of CC2430ZF128RTCR
CC2430ZF128RTCR is a true System-on-Chip (SoC) solution specifically tailored for IEEE 802.15.4 and ZigBee® applications. It enables ZigBee® nodes to be built with very low total bill-ofmaterial costs. The CC2430 combines the excellent performance of the leading CC2420 RF transceiver with an industry-standard enhanced 8051 MCU, 32/64/128 KB flash memory, 8 KB RAM and many other powerful features. Combined with the industry leading ZigBee® protocol stack (Z-Stack™) from Texas Instruments, the CC2430 provides the market’s most competitive ZigBee® solution.
Specification Of CC2430ZF128RTCR
8051
2.4 GHz
250 kbps
0 dBm
- 92 dBm
2 V
3.6 V
27 mA
27 mA
128 kB
- 40 C
+ 85 C
ADC Resolution:
12 bit
Data Bus Width:
8 bit
Data RAM Size:
8 kB
Interface Type:
2-Wire, 3-Wire, 4-Wire, SPI, UART
Number of ADC Channels:
8
Number of I/Os:
21 I/O
Number of Timers:
4 Timer
Unit Weight:
90 mg
Feature Of CC2430ZF128RTCR
RF/Layout
2.4 GHz IEEE 802.15.4 compliant RF transceiver (industry leading CC2420 radio core)
Excellent receiver sensitivity and robustness to interferers
Very few external components
Only a single crystal needed for mesh network systems
RoHS compliant 7x7mm QLP48 package
Low Power
Low current consumption (RX: 27 mA, TX: 27 mA, microcontroller running at 32 MHz)
Only 0.5 µA current consumption in powerdown mode, where external interrupts or the RTC can wake up the system
0.3 µA current consumption in stand-by mode, where external interrupts can wake up the system
Very fast transition times from low-power modes to active mode enables ultra low average power consumption in low dutycycle systems
Wide supply voltage range (2.0V - 3.6V)
Microcontroller
High performance and low power 8051 microcontroller core
32, 64 or 128 KB in-system programmable flash
8 KB RAM, 4 KB with data retention in all power modes
Powerful DMA functionality
Watchdog timer
One IEEE 802.15.4 MAC timer, one general 16-bit timer and two 8-bit timers
Hardware debug support
Peripherals
CSMA/CA hardware support.
Digital RSSI / LQI support
Battery monitor and temperature sensor
12-bit ADC with up to eight inputs and configurable resolution
AES security coprocessor
Two powerful USARTs with support for several serial protocols
21 general I/O pins, two with 20mA sink/source capability
Application Of CC2430ZF128RTCR
2.4 GHz IEEE 802.15.4 systems
ZigBee™ systems
Home/building automation
Industrial Control and Monitoring
Low power wireless sensor networks
PC peripherals
Set-top boxes and remote controls
Consumer Electronics
