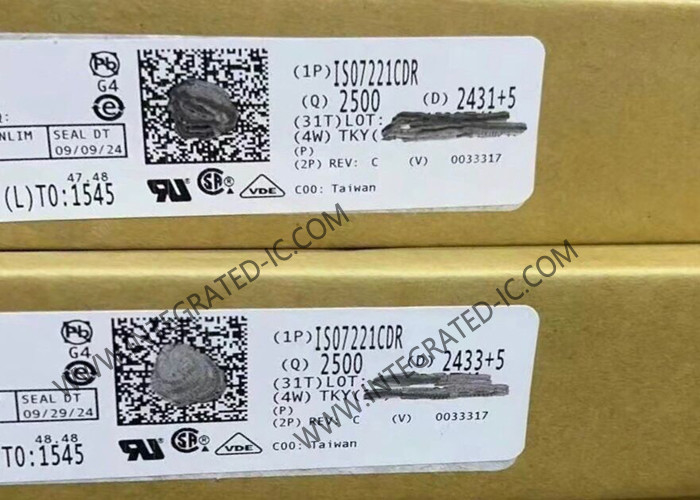

ISO7221CDR Integrated Circuit Chip 2500Vrms Dual Channel Digital Isolators SOIC8

ISO7221CDR Integrated Circuit Chip 2500Vrms Dual Channel Digital Isolators SOIC8

Product Description Of ISO7221CDR

ISO7221CDR is dual-channel digital isolators. It have a logic input and output buffer separated silicon-dioxide (SiO2) isolation barrier, providing galvanic isolation of up to 4000VPK per VDE.

ISO7221CDR require two supply voltages of 2.8V (C-Grade), 3.3V, 5V, or any combination. All inputs are 5V tolerant when supplied from a 2.8V or 3.3V supply and all outputs are 4mA CMOS.

Specification Of ISO7221CDR

Features Of ISO7221CDR

1, 5, 25, and 150Mbps Signaling Rate Options
– Low Channel-to-Channel Output Skew; 1ns Max
– Low Pulse-Width Distortion (PWD); 1ns Max
– Low Jitter Content; 1ns Typ at 150Mbps
50kV/μs Typical Transient Immunity
Operates with 2.8V (C-Grade), 3.3V, or 5V Supplies
4kV ESD Protection
High Electromagnetic Immunity
–40°C to +125°C Operating Range
Typical 28-Year Life at Rated Voltage

Applications Of ISO7221CDR
Factory Automation
– Modbus
– Profibus
– DeviceNet™ Data Buses
Computer Peripheral Interface
Servo Control Interface
Data Acquisition

Other Electronic Components In Stock

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
