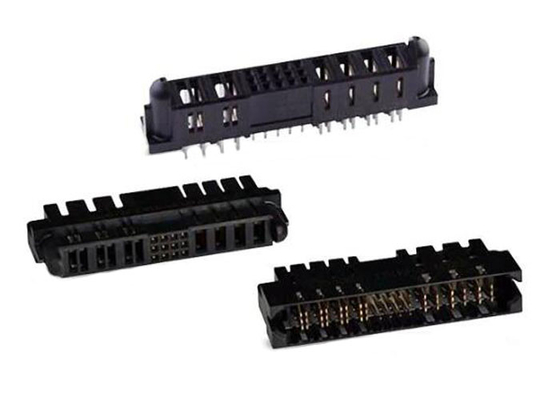

Product Description Of 10121505-320424DLF

10121505-320424DLF High Power Card Edge (HPCE®) connector is a next generation power card edge connector for demanding applica-tions requiring high linear current density and low power loss. HPCE® is rated to 9A per power contact beam (with multiple power contacts fully energized) without exceeding a 30°C temperature rise in still air.

Specification Of 10121505-320424DLF

Features Of 10121505-320424DLF

Current rating to 9A/power contact beam (with multiple power contacts fully energized) without exceeding a 30°C temperature rise in still air
Low profile height (2.8mm for straddle mount; 7.50mm for right angle) maximizes airflow for effective system cooling
One-piece assembly enables cost-effective power delivery for 1U and 2U power supplies or power distribution applications
Highly vented housing design maximizes heat dissipation
Vertical, right angle and straddle mount options are available with both power contacts for power distribution and signal contacts for power control
Number and placement of power and signal contacts are highly configurable for custom power needs
Polarized housing option ensures proper mating board orientation
Plastic housing features and mounting ear options are available for polarization to the host PCB as well as to secure the connector during the wave solder process

Applications Of 10121505-320424DLF

AC/DC pluggable power supplies in data, telecom and datacom/networking equipment
Industrial PCs
Industrial controls and instrumentation
Medical

Package Photo Of 10121505-320424DLF
