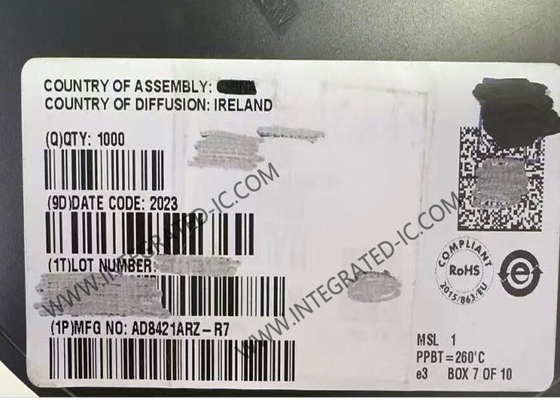

AD8421ARZ Integrated Circuit Chip 10MHz Low Power Instrumentation Amplifiers SOIC8

AD8421ARZ Integrated Circuit Chip 10MHz Low Power Instrumentation Amplifiers SOIC8​

Product Description Of AD8421ARZ

AD8421ARZ is a low cost, low power, extremely low noise, ultralow bias current, high speed instrumentation amplifier that is ideally suited for a broad spectrum of signal conditioning and data acquisition applications.
AD8421ARZ features extremely high CMRR, allowing it to extract low level signals in the presence of high frequency common-mode noise over a wide temperature range.

Specification Of AD8421ARZ

Features Of AD8421ARZ

Low power
- 2.3 mA maximum supply current
Low noise
- 3.2 nV/√Hz maximum input voltage noise at 1 kHz
- 200 fA/√Hz current noise at 1 kHz
Excellent ac specifications
- 10 MHz bandwidth (G = 1)
- 2 MHz bandwidth (G = 100)
- 0.6 µs settling time to 0.001% (G = 10)
- 80 dB CMRR to 20 kHz (G = 1)
- 35 V/µs slew rate
500 pA maximum input bias current
Inputs protected to 40 V from opposite supply
±2.5 V to ±18 V dual supply (5 V to 36 V single supply)
Gain set with a single resistor (G = 1 to 10,000)

Applications Of AD8421ARZ
Medical instrumentation
Precision data acquisition
Microphone preamplification
Vibration analysis
Multiplexed input applications
ADC driver
