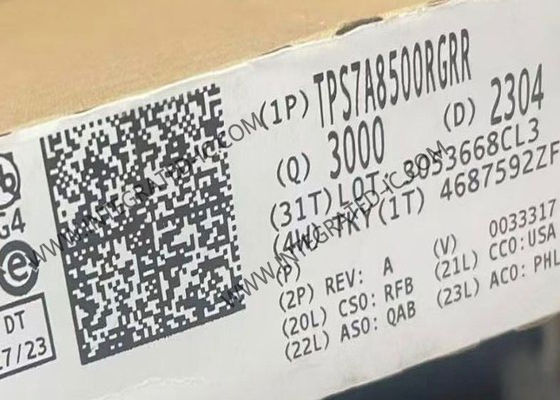

TPS7A8500RGRR Integrated Circuit Chip High-Accuracy Ultra-Low-Dropout Voltage Regulator With Power Good

TPS7A8500RGRR Integrated Circuit Chip High-Accuracy Ultra-Low-Dropout Voltage Regulator With Power Good

Product Description Of TPS7A8500RGRR
TPS7A8500RGRR is a low-noise (4.4 µVRMS), low-dropout linear regulator (LDO) capable of sourcing 4 A with only 240 mV of maximum dropout. The device output voltage is pin-programmable from 0.8 V to 3.95 V and adjustable from 0.8 V to 5.0 V using an external resistor divider.

Specification Of TPS7A8500RGRR

Features Of TPS7A8500RGRR
Low Dropout: 150 mV (typ) at 4 A
1% (max) Accuracy Over Line, Load, and Temperature
Output Voltage Noise:
4.4 µVRMS at 0.8-V Output
8.4 µVRMS at 5.0-V Output
Input Voltage Range:
Without BIAS: 1.4 V to 6.5 V
With BIAS: 1.1 V to 6.5 V
ANY-OUT Operation:
Output Voltage Range: 0.8 V to 3.95 V
Adjustable Operation:
Output Voltage Range: 0.8 V to 5.0 V
Power-Supply Ripple Rejection:
40 dB at 500 kHz
Excellent Load Transient Response
Adjustable Soft-Start In-Rush Control
Open-Drain Power-Good (PG) Output
Stable with a 47-µF or Larger Ceramic Output Capacitor
Operating Temperature Range:
–40ºC to +125°C
3.5-mm × 3.5-mm, 20-Pin VQFN

Applications Of TPS7A8500RGRR
Digital Loads: SerDes, FPGAs, and DSPs
Instrumentation, Medical, and Audio
High-Speed Analog Circuits:VCO, ADC, DAC, and LVDS
Imaging: CMOS Sensors and Video
Test and Measurement

Other Electronic Components In Stock

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
