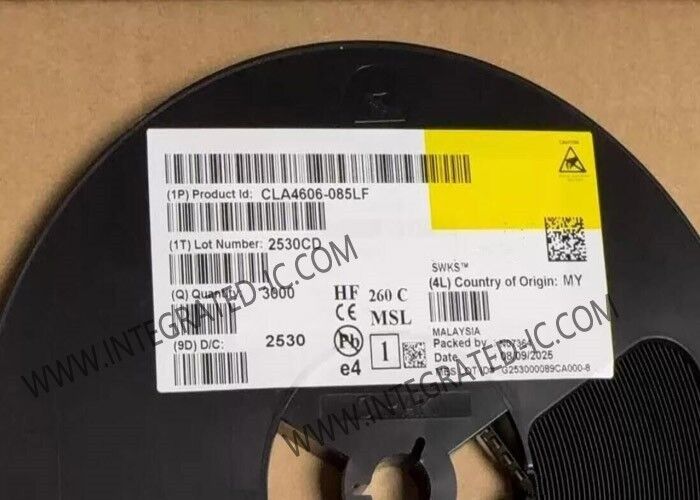

CLA4606-085LF 75V Surface Mount Low Capacitance PIN Limiter Diode Integrated Circuit Chip

CLA4606-085LF 75V Surface Mount Low Capacitance PIN Limiter Diode Integrated Circuit Chip
CLA4606-085LF 75V Surface Mount Low Capacitance PIN Limiter Diode Integrated Circuit Chip
CLA4606-085LF 75V Surface Mount Low Capacitance PIN Limiter Diode Integrated Circuit Chip CLA4606-085LF 75V Surface Mount Low Capacitance PIN Limiter Diode Integrated Circuit Chip CLA4606-085LF 75V Surface Mount Low Capacitance PIN Limiter Diode Integrated Circuit Chip

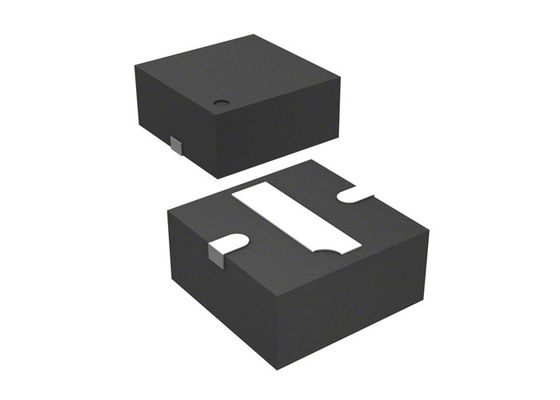

Large Image :  CLA4606-085LF 75V Surface Mount Low Capacitance PIN Limiter Diode Integrated Circuit Chip

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: CLA4606-085LF
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

CLA4606-085LF 75V Surface Mount Low Capacitance PIN Limiter Diode Integrated Circuit Chip

Description
Part Number: CLA4606-085LF Diode Type: PIN - Single
Voltage - Peak Reverse (Max): 75V Current - Max: 1.5 A
Capacitance @ Vr, F: 0.38pF @ 6V, 1MHz Power Dissipation (Max): 3 W

CLA4606-085LF Integrated Circuit Chip PIN Diodes 75V Surface Mount Limiter Diode

CLA4606-085LF is a surface mountable, low capacitance silicon PIN limiter diode designed as a shunt connected PIN diode for high power limiter applications from 10 MHz to over 6 GHz.

Maximum resistance at 10 mA is 2 Ω and maximum capacitance at 6 V is 0.38 pF. The combination of low junction capacitance, low parasitic inductance, low thermal resistance, and nominal 2.5 μm I-region width, makes the CLA4606-085LF useful in large signal limiter applications. The threshold level is +12 dBm, nominal.

Specifications
Parameter Value
Part Number CLA4606-085LF
Product Category PIN Diodes
Vr - Reverse Voltage 75 V
Maximum Diode Capacitance 0.38 pF
Maximum Series Resistance @ Maximum IF 2 Ohms
Minimum Operating Temperature -40 ℃
Maximum Operating Temperature +150 ℃
Minimum Operating Frequency 10 MHz
Maximum Operating Frequency 6 GHz
Package / Case QFN-3
Carrier Life 10 ns
Maximum Series Resistance @ Minimum IF 2 Ohms
Pd - Power Dissipation 3 W
Key Features
  • Low-thermal resistance: 91 °C/W
  • Typical threshold level: +10 dBm @ 2.5 GHz
  • Low capacitance: 0.3 pF
  • Low profile, ultra-miniature QFN (3-pin, 2 x 2 mm) package
Applications
  • Low-loss, high-power limiters
  • Receiver protectors
