CLA4606-085LF Integrated Circuit Chip PIN Diodes 75V Surface Mount Limiter Diode

CLA4606-085LF Integrated Circuit Chip PIN Diodes 75V Surface Mount Limiter Diode​

Product Description Of CLA4606-085LF

CLA4606-085LF is a surface mountable, low capacitance silicon PIN limiter diode designed as a shunt connected PIN diode for high power limiter applications from 10 MHz to over 6 GHz.

Maximum resistance at 10 mA is 2 Ω and maximum capacitance at 6 V is 0.38 pF. The combination of low junction capacitance, low parasitic inductance, low thermal resistance, and nominal 2.5 μm I-region width, makes the CLA4606-085LF useful in large signal limiter applications. The threshold level is +12 dBm, nominal.

Specification Of CLA4606-085LF

Features Of CLA4606-085LF

Low-thermal resistance: 91 °C/W
Typical threshold level: +10 dBm @ 2.5 GHz
Low capacitance: 0.3 pF

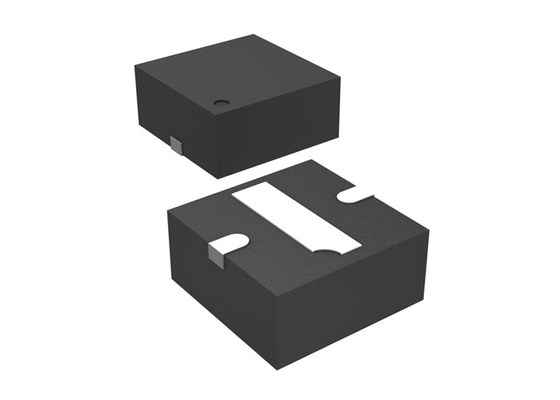

Low profile, ultra-miniature QFN (3-pin, 2 x 2 mm) package

Applications Of CLA4606-085LF
Low-loss, high-power limiters
Receiver protectors
