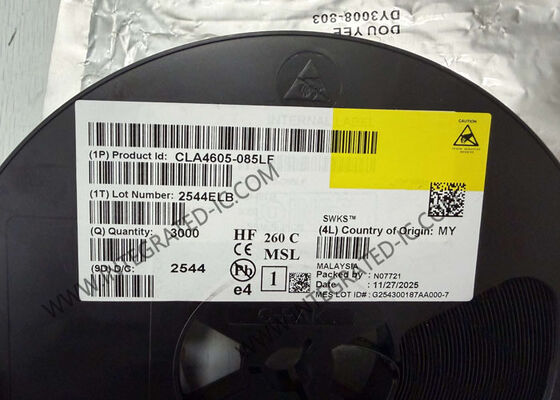

CLA4605-085LF Integrated Circuit Chip Silicon PIN Limiter Diode For Receiver Protectors

CLA4605-085LF Integrated Circuit Chip Silicon PIN Limiter Diode For Receiver Protectors
CLA4605-085LF Integrated Circuit Chip Silicon PIN Limiter Diode For Receiver Protectors
CLA4605-085LF Integrated Circuit Chip Silicon PIN Limiter Diode For Receiver Protectors CLA4605-085LF Integrated Circuit Chip Silicon PIN Limiter Diode For Receiver Protectors CLA4605-085LF Integrated Circuit Chip Silicon PIN Limiter Diode For Receiver Protectors

Large Image :  CLA4605-085LF Integrated Circuit Chip Silicon PIN Limiter Diode For Receiver Protectors

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: CLA4605-085LF
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-3
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

CLA4605-085LF Integrated Circuit Chip Silicon PIN Limiter Diode For Receiver Protectors

Description
Part Number: CLA4605-085LF Vr - Reverse Voltage:: 60 V
Maximum Diode Capacitance:: 0.33 PF Maximum Series Resistance @ Maximum IF:: 2 Ohms
Minimum Operating Temperature:: - 40 C Maximum Operating Temperature:: + 150 C

CLA4605-085LF Integrated Circuit Chip Silicon PIN Limiter Diode For Receiver Protectors
Product Description

CLA4605-085LF is a surface-mountable, low-capacitance silicon PIN limiter diode designed as a shunt connected PIN diode for high power limiter applications from 10 MHz to over 6 GHz.

Maximum resistance at 10 mA is 2 Ω and maximum capacitance at 6 V is 0.45 pF. The combination of low junction capacitance, low parasitic inductance, low thermal resistance, and nominal 2 um I-region width, makes the CLA4605-085LF useful in large signal limiter applications. The threshold level is +9 dBm, nominal.

Specifications
Vr - Reverse Voltage: 60 V
Maximum Diode Capacitance: 0.33 pF
Maximum Series Resistance @ Maximum IF: 2 Ohms
Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: +150 °C
Minimum Operating Frequency: 10 MHz
Maximum Operating Frequency: 6 GHz
Carrier Life: 7 ns
Maximum Series Resistance @ Minimum IF: 2 Ohms
Pd - Power Dissipation: 3 W
Unit Weight: 53.142 mg
Key Features
  • Low-thermal resistance: 91 °C/W
  • Typical threshold level: +9 dBm
  • Low capacitance: 0.32 pF
  • Low profile, ultra-miniature QFN (3-pin, 2 x 2 mm) package (MSL1, 260 °C per JEDEC J-STD-020)
Applications
  • Low-loss, high-power limiters
  • Receiver protectors
