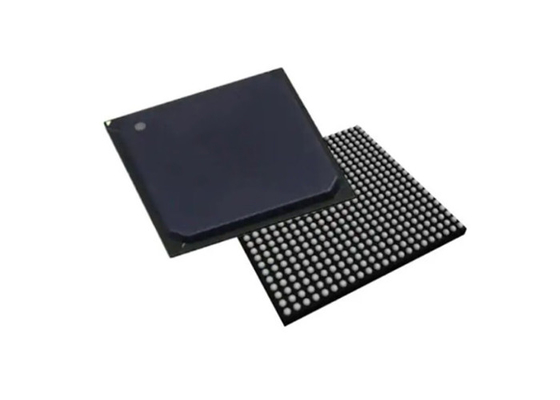

5CGXBC9E6F31C7N Field Programmable Gate Array 3.125 Gb/s Cyclone V FPGA IC FBGA-896

5CGXBC9E6F31C7N Field Programmable Gate Array 3.125 Gb/s Cyclone V FPGA IC FBGA-896

Product Description Of 5CGXBC9E6F31C7N
5CGXBC9E6F31C7N Cyclone® V devices is designed to simultaneously accommodate the shrinking power consumption, cost, and time-to-market requirements; and the increasing bandwidth requirements for high-volume and cost-sensitive applications.

Sprcification Of 5CGXBC9E6F31C7N

Features Of 5CGXBC9E6F31C7N
Built on TSMC's 28 nm low-power (28LP) process technology and includes an abundance of hard intellectual property (IP) blocks
Up to 40% lower power consumption than the previous generation device
8-input adaptive logic module (ALM)
Up to 13.59 megabits (Mb) of embedded memory
Variable-precision digital signal processing (DSP) blocks
3.125 gigabits per second (Gbps) and 6.144 Gbps transceivers
Hard memory controllers
Tight integration of a dual-core Arm Cortex-A9 MPCore processor, hard IP, and an FPGA in a single Cyclone V system-on-a-chip (SoC)
Supports over 128 Gbps peak bandwidth with integrated data coherency between the processor and the FPGA fabric
Requires only two core voltages to operate
Available in low-cost wirebond packaging
Includes innovative features such as Configuration via Protocol (CvP) and partial reconfiguration
