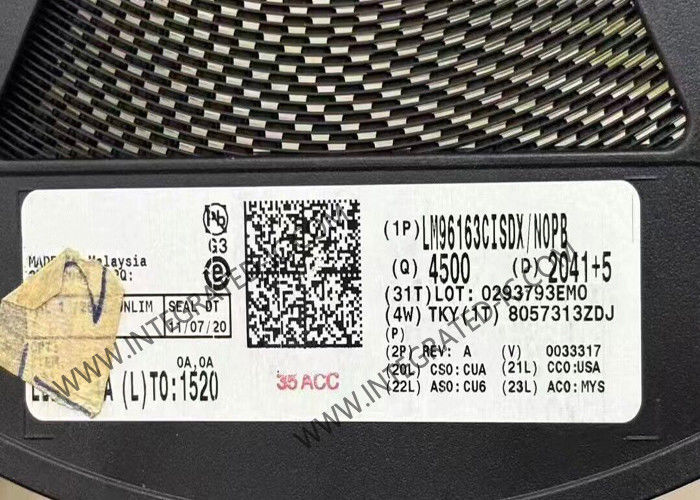

LM96163CISDX Sensor IC Remote Diode Digital Temperature Sensor WSON-10

LM96163CISDX Sensor IC Remote Diode Digital Temperature Sensor WSON-10

Product Description Of LM96163CISDX
LM96163CISDX has remote and local temperature sensors with integrated fan control that includes TruTherm BJT transistor beta compensation technology for remote diode sensing. The LM96163CISDX accurately measures: its own temperature and the temperature of a diode-connected transistor, such as a 2N3904, or a thermal diode commonly found on Computer Processors, Graphics Processor Units (GPU) and other ASIC's. The LM96163CISDX has an offset register to correct for errors caused by different non-ideality factors of other thermal diodes.

Specification Of LM96163CISDX

Features Of LM96163CISDX
TruTherm BJT Beta Compensation Technology Supports 45nm, 65nm and 90nm Processor Remote Diodes
Factory Trimmed for Intel® 45 nm Processor Thermal Diodes
Accurately Senses Diode-Connected 2N3904 Transistors or Thermal Diodes On-board Large Processors or ASIC's
Accurately Senses its Own Temperature
Integrated PWM Fan Speed Control Output Supports High Resolution at 22.5kHz Frequency for 4-pin Fans
Acoustic Fan Noise Reduction with User-Programmable 12-Step Lookup Table
LUT Transition Fine Resolution Smoothing Function
Tachometer Input for Measuring Fan RPM
Smart-Tach Modes for Measuring RPM of Fans with Pulse-Width-Modulated Power as Shown in Typical Application
ALERT Output for Processor Event Notification
TCRIT Output for Critical Temperature System Shutdown
Offset Register Can Adjust for a Variety of Thermal Diodes
10-Bit Plus Sign and 11-Bit Unsigned Formats, with 1/8°C Resolution
Extended Resolution to 1/32°C when Digital Filter Enabled
Resolves Remote Diode Temperatures up to 255.875°C
SMBus 2.0 Compatible Interface, with TIMEOUT and ARA
10-Pin SON Package

Applications Of LM96163CISDX
Processor Thermal Management
Electronic Test and Office Equipment
Industrial Controls
