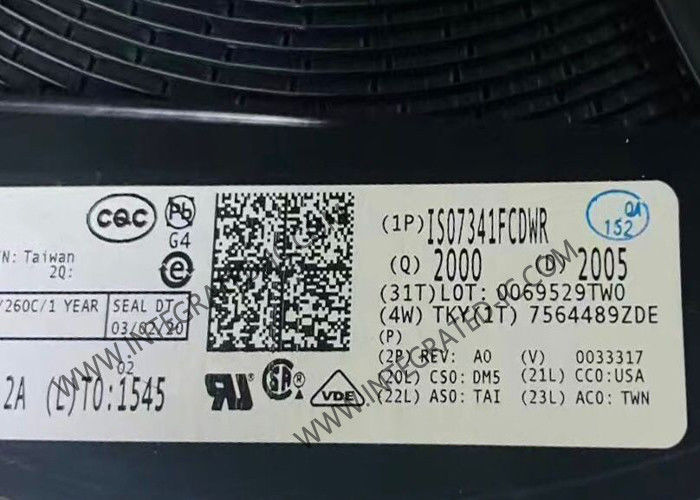

ISO7341FCDWR Integrated Circuit Chip 3000Vrms Quad Channel Digital Isolators SOIC16

ISO7341FCDWR Integrated Circuit Chip 3000Vrms Quad Channel Digital Isolators SOIC16

Product Description Of ISO7341FCDWR

ISO7341FCDWR is 25Mbps, Low-Power, Quad-Channel Digital Isolators, it have four isolated channels comprised of logic input and output buffers separated by a silicon dioxide (SiO2) insulation barrier.

ISO7341FCDWR has three forward and one reverse-direction channels. In case of input power or signal loss, the default output is for devices with suffix and for devices without suffix.

Specification Of ISO7341FCDWR

Features Of ISO7341FCDWR

Signaling Rate: 25 Mbps
Integrated Noise Filter on the Inputs
Default Output High and Low Options
Low Power Consumption, Typical ICC per Channel at 1 Mbps:
– ISO7341x: 1.2 mA (5-V Supplies), 0.9 mA (3.3-V Supplies)
Low Propagation Delay: 31 ns Typical (5-V Supplies)
3.3-V and 5-V Level Translation
Wide Temperature Range: –40°C to 125°C
70-KV/μs Transient Immunity, Typical (5-V Supplies)
Robust Electromagnetic Compatibility (EMC)
– System-level ESD, EFT, and Surge Immunity
– Low Emissions
Operates from 3.3-V and 5-V Supplies
Wide-Body SOIC-16 Package

Applications Of ISO7341FCDWR
Optocoupler Replacement in:
Industrial Fieldbus
Profibus
Modbus
DeviceNet Data Buses
Servo Control Interface
Motor Control
Power Supplies
Battery Packs
