TPS7B7702QPWPRQ1 Integrated Circuit Chip Automotive Dual-Channel Antenna LDO With Current Sense

TPS7B7702QPWPRQ1 Integrated Circuit Chip Automotive Dual-Channel Antenna LDO With Current Sense
TPS7B7702QPWPRQ1 Integrated Circuit Chip Automotive Dual-Channel Antenna LDO With Current Sense

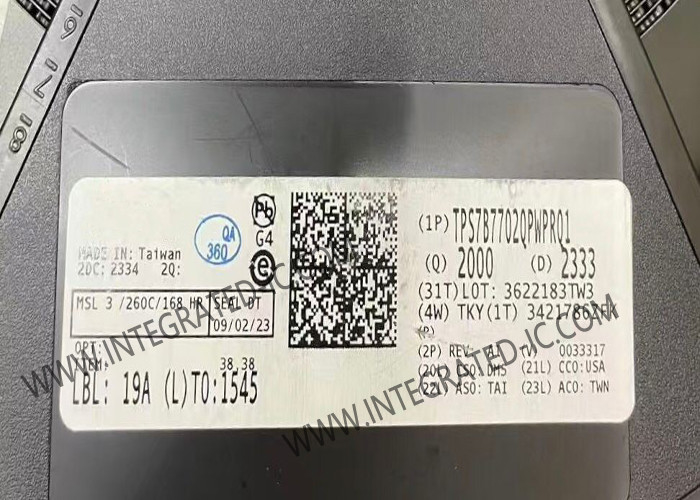

Large Image :  TPS7B7702QPWPRQ1 Integrated Circuit Chip Automotive Dual-Channel Antenna LDO With Current Sense

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS7B7702QPWPRQ1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: HTSSOP-16
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day

TPS7B7702QPWPRQ1 Integrated Circuit Chip Automotive Dual-Channel Antenna LDO With Current Sense

Description
Part Number: TPS7B7702QPWPRQ1 Output Voltage:: 1.5 V To 20 V
Output Current:: 300 MA Number Of Outputs:: 2 Output
Quiescent Current:: 18 UA Input Voltage - Min:: 4.5 V

TPS7B7702QPWPRQ1 Integrated Circuit Chip Automotive Dual-Channel Antenna LDO With Current Sense



Product Description Of TPS7B7702QPWPRQ1
TPS7B7702QPWPRQ1 devices feature a single and dual, high-voltage low-dropout regulator (LDO) with current sensing, designed to operate with a wide input-voltage range from 4.5 V to 40 V (45-V load dump protection). These devices provide power to the low-noise amplifiers of the active antenna through a coax cable with 300 mA per channel current. Each channel also provides an adjustable output voltage from 1.5 V to 20 V.



Specification Of TPS7B7702QPWPRQ1

1.5 V to 20 V

300 mA

2 Output

Positive

18 uA

4.5 V

40 V

73 dB

Adjustable

- 40 C

+ 125 C

350 mV

Dropout Voltage - Max:

500 mV

Line Regulation:

10 mV

Load Regulation:

20 mV

Moisture Sensitive:

Yes

Operating Supply Current:

600 uA

Output Voltage Range:

1.5 V to 20 V

Unit Weight:

130 mg



Feature Of TPS7B7702QPWPRQ1
Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range
Device HBM ESD Classification 2
Device CDM ESD Classification C4B
Single and Dual-Channel LDO With Current Sense and Adjustable Current-Limit
4.5-V to 40-V Wide Input Voltage Range, 45-V Load Dump
Power Switch Mode When Tying FB to GND
1.5-V to 20-V Adjustable Output Voltage
Up to 300-mA Output Current per Channel
Adjustable Current-Limit With External Resistor
High Accuracy Current-Sense to Detect Antenna Open Condition at Low Current Without Further Calibration
High Power-Supply Rejection Ratio: Typical 73 dB at 100 Hz
Integrated Reverse-Polarity Protection, Down to –40 V and No Need for External Diode
500-mV Max Dropout Voltage at 100-mA Load
Stable With Output Capacitor in 2.2-µF to 100-µF Range (ESR 1 mΩ to 5 Ω)
Integrated Protection and Diagnostics
Thermal Shutdown
Undervoltage Lockout (UVLO)
Short-Circuit Protection
Reverse Battery Polarity Protection
Reverse-Current Protection
Output Short-to-Battery Protection
Output Inductive Load Clamp
Multiplexing Current Sense Between Channels and Devices
Ability to Distinguish All Faults With Current Sense
16-Pin HTSSOP PowerPAD™ Package



Applications Of TPS7B7702QPWPRQ1
Infotainment Active-Antenna Power Supplies
Surround-View Camera Power Supplies
High-Side Power Switch For Small-Current Applications



Other Supply Product Types

Part Number

Package

SLRC61003HNY

HVQFN-32

88W8987-A2-NYE2I005

HVQFN68

88MW320-A0-NAP2I000

HVQFN68

K32W041AK

40-HVQFN

PN7362AUEV

64-VFBGA

TEF7092AHN

QFN

TEF7094AHN

HVQFN32

TEF6686AHN

HVQFN32

TEF6689AHN

HVQFN32

TEF6688AHN

HVQFN32

TEF6689HN

HVQFN32

A2I20D020NR1

TO-270-17

TEF6657AHN

HVQFN32

TEF6692AHN

HVQFN32

TEF6687HN

HVQFN32

MMRF2010GNR1

TO-270-14

TEF6635HW

100-TQFP

TEF6694AHN

HVQFN32

TEF6687AHN

HVQFN32

AFLP5G25641T6

17-LFLGA

88W8801-B0-NMD2I000

HVQFN48

CLRC66103HNY

32-VFQFN

PCF7952LTT

24-TSSOP

MF1SEP1031DA8

MOA-8

NT2H1511G0DUDV

SMD

CLRC66103HNE

32-VFQFN

88Q9098RA1-NYI2A0R1

HVQFN148

MKW35A512VFT4

HVQFN48

SL3S1206FUD2/HAPZ

VFBGA64

AFRX5G372T4

LGA21
