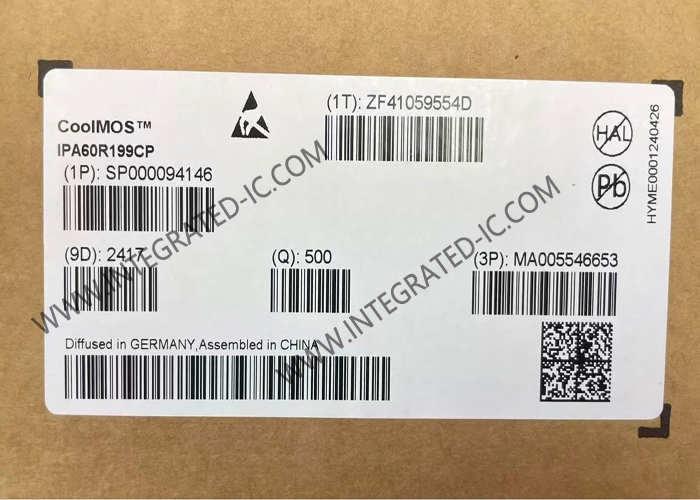

IPA60R199CP Integrated Circuit Chip 600V 16A N-Channel CoolMOS Power Transistor
IPA60R199CP Integrated Circuit Chip 600V 16A N-Channel CoolMOS Power Transistor
Description
Part Number:
IPA60R199CP
Transistor Polarity::
N-Channel
Number Of Channels::
1 Channel
Vds - Drain-Source Breakdown Voltage::
600 V
Id - Continuous Drain Current::
16 A
Rds On - Drain-Source Resistance::
199 MOhms
IPA60R199CP Integrated Circuit Chip 600V 16A N-Channel CoolMOS Power Transistor
Product Description Of IPA60R199CP
IPA60R199CP is designed for hard and soft switching topologies, CCM PFC as well as PWM for ATX, notebook adapter PDP and LCD TV.
Specification Of IPA60R199CP
N-Channel
1 Channel
600 V
16 A
199 mOhms
- 20 V, + 20 V
3.5 V
32 nC
- 55 C
+ 150 C
34 W
Configuration:
Single
Fall Time:
5 ns
Height:
16.15 mm
Length:
10.65 mm
Rise Time:
5 ns
Typical Turn-Off Delay Time:
50 ns
Typical Turn-On Delay Time:
10 ns
Width:
4.85 mm
Unit Weight:
2 g
Feature Of IPA60R199CP
Lowest figure of merit R on x Q g
Ultra low gate charge
Extreme dv/dt rate
Ultra low R DS(on), ultra low gate charge, very fast switching
V th 3 V, g fs very high, internal R g very low
High current capability
Significant reduction of conduction and switching losses
High power density and efficiency for superior power conversion systems
Best-in-class price/performance ratio
Applications Of IPA60R199CP
Solar
Server
Telecom
Consumer
Adapter
PC power
