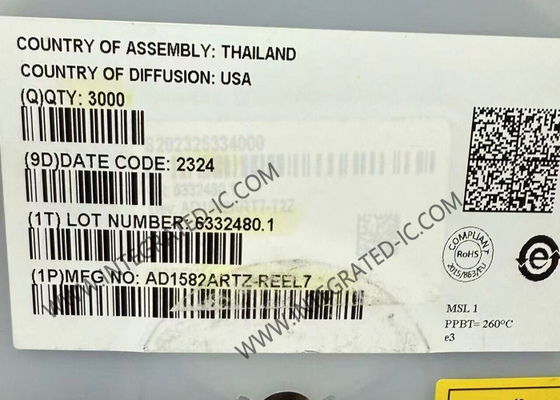

AD1582ARTZ Integrated Circuit Chip 2.5V Micropower Precisions Series Mode Voltage References
AD1582ARTZ Integrated Circuit Chip 2.5V Micropower Precisions Series Mode Voltage References
Description
Part Number:
AD1582ARTZ
Output Voltage::
2.5 V
Initial Accuracy::
0.8 %
Temperature Coefficient::
50 PPM / C
Series VREF - Input Voltage - Max::
12 V
Shunt Current - Max::
5 MA
AD1582ARTZ Integrated Circuit Chip 2.5V Micropower Precisions Series Mode Voltage References
Product Description Of AD1582ARTZ
AD1582ARTZ is low cost, low power, low dropout, precision band gap references. The AD1582ARTZ available as 3-terminal (series) devices and are packaged in the compact SOT-23, 3-lead surface-mount package. The versatility of these references makes them ideal for use in battery-powered 3 V or 5 V systems where there can be wide variations in supply voltage and a need to minimize power dissipation.
Specification Of AD1582ARTZ
2.5 V
0.8 %
50 PPM / C
12 V
5 mA
- 40 C
+ 125 C
Accuracy:
3.5 mV/mA
Height:
1.02 mm (Max)
Length:
2.9 mm
Load Regulation:
3.5 mV/mA
Operating Supply Current:
70 uA
Output Current:
5 mA
Width:
1.3 mm
Unit Weight:
8 mg
Features Of AD1582ARTZ
Series reference (2.5 V, 3 V, 4.096 V, 5 V)
Low quiescent current: 70 µA maximum
Current output capability: ±5 mA
Wide supply range: VIN = VOUT + 200 mV to 12 V
Wideband noise (10 Hz to 10 kHz): 50 µV rms
Specified temperature range: −40°C to +125°C
Compact, surface-mount SOT-23 package
Qualified for automotive applications
Applications Of AD1582ARTZ
Portable, battery-powered equipment; for example, notebook computers, cellular phones, pagers, PDAs, GPSs, and DMMs
Computer workstations; suitable for use with a wide range of video RAMDACs
Smart industrial transmitters
PCMCIA cards
Automotive
Hard disk drives
3 V/5 V, 8-bit/12-bit data converters
