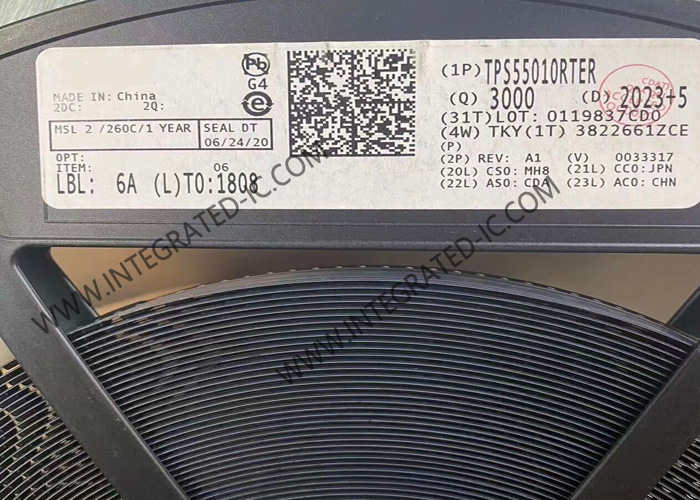

TPS55010RTER Integrated Circuit Chip Isolated DC DC Converter WQFN16 Transformer Driver

TPS55010RTER Integrated Circuit Chip Isolated DC DC Converter WQFN16 Transformer Driver

Product Description Of TPS55010RTER

TPS55010RTER is a transformer driver designed to provide isolated power for isolated interfaces, such as RS-485 and RS-232, from 3.3 V or 5 V input supply.

TPS55010RTER uses fixed frequency current mode control and half bridge power stage with primary side feedback to regulate the output voltage for power levels up to 2W. The switching frequency is adjustable from 100 kHz to 2000 kHz so solution size, efficiency and noise can be optimized.

Specification Of TPS55010RTER

Features Of TPS55010RTER

Isolated Fly-Buck™ Topology
Primary Side Feedback
100 kHz to 2000 kHz Switching Frequency
Synchronizes to External Clock
Adjustable Slow Start
Adjustable Input Voltage UVLO
Open Drain Fault Output
Cycle-by-Cycle Current Limit
Thermal Shutdown Protection
3 mm × 3 mm 16 Pin QFN Package

Applications Of TPS55010RTER
Noise Immunity in PLCs, Data Acquisition and Measurement Equipment
Isolated RS-232 and RS-485 Communication Channels
Powers Line Drivers, ISO Amplifiers, Sensors, CAN Transceivers
Floating Supplies for IGBT Gate Drivers
Promotes Safety in Medical Equipment
