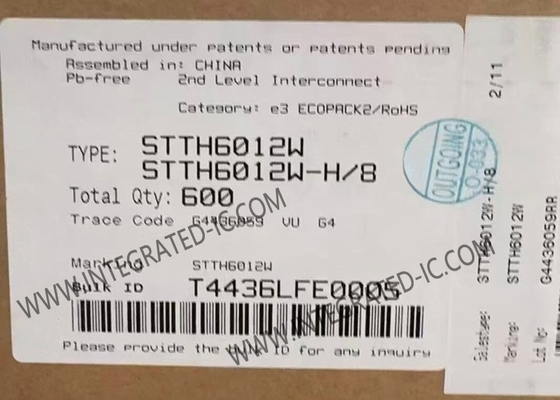

STTH6012W Integrated Circuit Chip 1200V 60A Ultrafast High Voltage Diode DO-247-2
STTH6012W Integrated Circuit Chip 1200V 60A Ultrafast High Voltage Diode DO-247-2
Description
Part Number:
STTH6012W
Vr - Reverse Voltage::
1.2 KV
If - Forward Current::
60 A
Vf - Forward Voltage::
2.25 V
Max Surge Current::
400 A
Ir - Reverse Current::
30 UA
STTH6012W Integrated Circuit Chip 1200V 60A Ultrafast High Voltage Diode DO-247-2
Product Description Of STTH6012W
The high-quality design of this STTH6012W diode has produced a device with low leakage current, regularly reproducible characteristics, and intrinsic ruggedness. These characteristics make it ideal for heavy-duty applications that demand long-term reliability.
Such demanding applications include industrial power supplies, motor control, and similar mission-critical systems that require rectification and freewheeling. These diodes also fit into auxiliary functions such as snubber, bootstrap, and demagnetization applications.
The improved performance in low leakage current, and therefore thermal runaway guard band, is an immediate competitive advantage for this device.
Specification Of STTH6012W
1.2 kV
60 A
2.25 V
400 A
30 uA
50 ns
+ 175 C
Height:
20.15 mm (Max)
Length:
15.75 mm (Max)
Width:
5.15 mm (Max)
Unit Weight:
4.400 g
Feature Of STTH6012W
Ultrafast, soft recovery
Low leakage current
Very low conduction and switching losses
High frequency and/or high pulsed current operation
High reverse voltage capability
High junction temperature capability
ECOPACK2 compliant
Application Of STTH6012W
AC-DC converter
DC-DC stage in power supply
DC-AC converter
Solar inverters
EV charging station
Telecom power supply
UPS
Other Electronic Components In Stock
Part Number
Package
ADC12DL1500ACF
FCBGA-256
ADS1288IRHBR
VQFN-32
AFE78101RRUR
UQFN-24
AFE781H1RRUR
UQFN-24
AFE78201RRUR
UQFN-24
AFE782H1RRUR
UQFN-24
ADS9227RHAT
VQFN-40
ADC3910D125IRSMR
VQFN-32
REF54250CDR
8-SOIC
TDP2004IRNQR
40-WQFN
DAC81401PWR
20-TSSOP
ADS9817RSHR
56-VQFN
DAC39RFS12ACK
256-FCBGA
DAC39RF10EFACK
256-FCBGA
DAC39RF12ACK
256-FCBGA
DAC39RFS10EFACK
256-FCBGA
DRV8242HQRHLRQ1
20-VQFN
TM4C123BH6NMRIR
NFBGA-157
TM4C123GH6NMRIR
NFBGA-157
F2800152QRHBRQ1
VQFN-32
LMG3526R050RQSR
52-VQFN
LMG3522R050RQSR
52-VQFN
R7FS3A6783A01CFM
64-LQFP
R7FS5D97E3A01CFC
176-LQFP
R7FS3A37A3A01CFM
64-LQFP
R7FS3A37A2A01CBJ
121-LFBGA
R7FS7G27G3A01CFP
100-LQFP
R7FS3A77C3A01CFM
64-LQFP
R7FA4M3AE2CBM
144-LFBGA
R7FA4M3AD2CBM
144-LFBGA
FAQ
Q: Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
