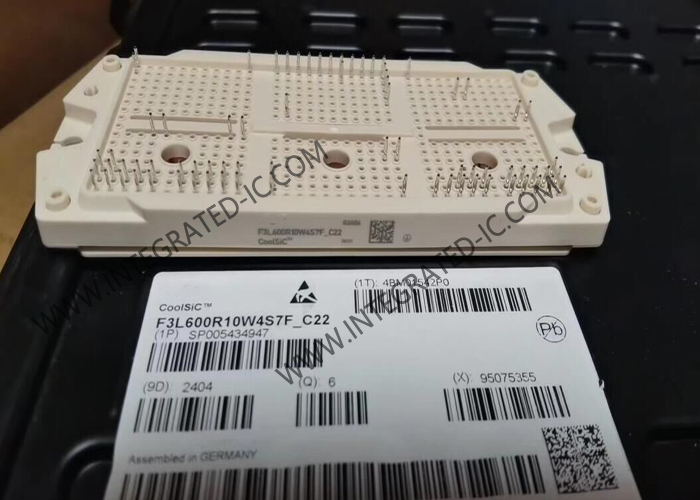

F3L600R10W4S7F-C22 Automotive IGBT Modules 950V 600A EasyPACK 4B 3-Level IGBT Module

F3L600R10W4S7F-C22 Automotive IGBT Modules 950V 600A EasyPACK 4B 3-Level IGBT Module
F3L600R10W4S7F-C22 Automotive IGBT Modules 950V 600A EasyPACK 4B 3-Level IGBT Module F3L600R10W4S7F-C22 Automotive IGBT Modules 950V 600A EasyPACK 4B 3-Level IGBT Module

Large Image :  F3L600R10W4S7F-C22 Automotive IGBT Modules 950V 600A EasyPACK 4B 3-Level IGBT Module

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: F3L600R10W4S7F-C22
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MODULE
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

F3L600R10W4S7F-C22 Automotive IGBT Modules 950V 600A EasyPACK 4B 3-Level IGBT Module

Description
Part Number: F3L600R10W4S7F-C22 Series: EasyPACK™
IGBT Type: Trench Field Stop Configuration: Three Level Inverter
Voltage - Collector Emitter Breakdown (Max): 950 V Current - Collector (Ic) (Max): 310 A

F3L600R10W4S7F-C22 Automotive IGBT Modules 950V 600A EasyPACK 4B 3-Level IGBT Module



Product Description Of F3L600R10W4S7F-C22

F3L600R10W4S7F-C22 is 950V, 600A EasyPACK™ 4B 3-Level IGBT module with TRENCHSTOP™ IGBT7 and 1200 V CoolSiC™ Schottky Diode.


Specification Of F3L600R10W4S7F-C22

Series
EasyPACK™
Part Status
Active
IGBT Type
Trench Field Stop
Configuration
Three Level Inverter
Voltage - Collector Emitter Breakdown (Max)
950 V
Current - Collector (Ic) (Max)
310 A
Vce(on) (Max) @ Vge, Ic
2.25V @ 15V, 400A
Current - Collector Cutoff (Max)
1 mA
Input Capacitance (Cies) @ Vce
49.2 nF @ 25 V
Input
Standard
NTC Thermistor
Yes
Operating Temperature
-40°C ~ 150°C (TJ)
Mounting Type
Chassis Mount
Package / Case
Module
Supplier Device Package
AG-EASY4B


Features Of F3L600R10W4S7F-C22

EasyPACK™ 4B with three substrates
ANPC topology with four fast switches
950 V IGBT7 and 1200 V SiC diode
Optimized stray inductance
Improved hold-down concept


Applications Of F3L600R10W4S7F-C22
1-phase string inverter solutions
Energy Storage Systems
Photovoltaic
