STW3N150 Integrated Circuit Chip N-Channel 1500V 2.5A 6 Ω Power MOSFET Transistors

STW3N150 Integrated Circuit Chip N-Channel 1500V 2.5A 6 Ω Power MOSFET Transistors
STW3N150 Integrated Circuit Chip N-Channel 1500V 2.5A 6 Ω Power MOSFET Transistors

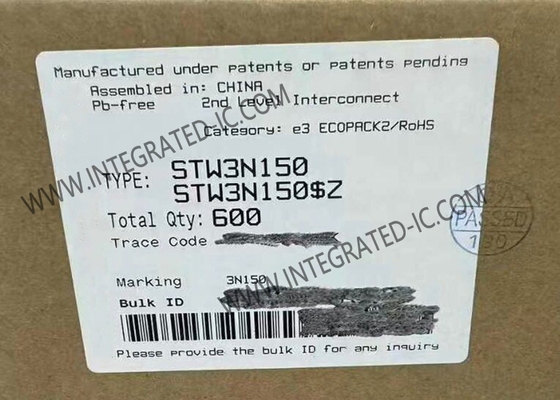

Large Image :  STW3N150 Integrated Circuit Chip N-Channel 1500V 2.5A 6 Ω Power MOSFET Transistors

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: STW3N150
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-247-3
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

STW3N150 Integrated Circuit Chip N-Channel 1500V 2.5A 6 Ω Power MOSFET Transistors

Description
Part Number: STW3N150 Vds - Drain-Source Breakdown Voltage:: 1.5 KV
Id - Continuous Drain Current:: 2.5 A Rds On - Drain-Source Resistance:: 9 Ohms
Vgs - Gate-Source Voltage:: - 30 V, + 30 V Vgs Th - Gate-Source Threshold Voltage:: 3 V

STW3N150 Integrated Circuit Chip N-Channel 1500V 2.5A 6 Ω Power MOSFET Transistors



Product Description Of STW3N150
STW3N150 Power MOSFETs are designed using the consolidated strip-layout-based MESH OVERLAY process. The result is a product that matches or improves on the performance of comparable standard parts from other manufacturers.



Specification Of STW3N150

N-Channel
1 Channel
1.5 kV
2.5 A
9 Ohms
- 30 V, + 30 V
3 V
29.3 nC
- 55 C
+ 150 C
140 W
Enhancement
Configuration: Single
Fall Time: 61 ns
Forward Transconductance - Min: 2.6 S
Height: 20.15 mm
Length: 15.75 mm
Product Type: MOSFETs
Rise Time: 47 ns
Typical Turn-Off Delay Time: 45 ns
Typical Turn-On Delay Time: 24 ns
Width: 5.15 mm
Unit Weight: 6 g



Feature Of STW3N150
100% avalanche tested
Intrinsic capacitances and Qg minimized
High speed switching
Fully isolated TO-3PF plastic package, creepage distance path is 5.4 mm (typ.)



Application Of STW3N150
Switching applications
