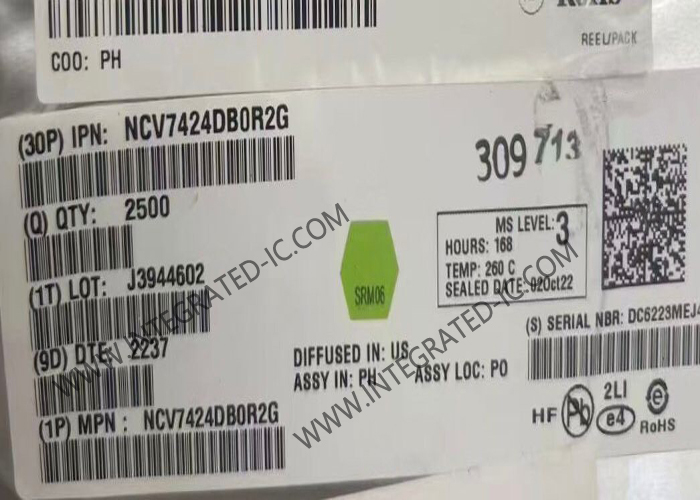

NCV7424DB0R2G Integrated Circuit Chip Quad LIN Transceiver TSSOP16 Wired Transceivers

NCV7424DB0R2G Integrated Circuit Chip Quad LIN Transceiver TSSOP16 Wired Transceivers

Product Description Of NCV7424DB0R2G

NCV7424DB0R2G is a four channel physical layer device using the Local Interconnect Network (LIN) protocol. It allows interfacing of four independent LIN physical buses and the LIN protocol controllers.
NCV7424DB0R2G is compliant to LIN 2.x Protocol Specification package and the SAE J2602 standard. The NCV7424DB0R2G LIN device is a member of the in-vehicle networking (IVN) transceiver family. The device is a monolithic solution incorporating 4 times the NCV7321-1 transceiver.

Specification Of NCV7424DB0R2G

Features Of NCV7424DB0R2G

TSSOP16 Package. Pin-out Compatible with One Single LIN NCV7321 Transceiver (Pin Numbers 4 to 7, and 10 to 13)
Compliant with LIN2.x, Backwards Compatible to Version 1.3 and J2602
Transmission Rate 1 kbps to 20 kbps
Indefinite Short-Circuit Protection on LIN towards Supply and Ground
Bus Pins Protected Against Transients in an Automotive Environment
Thermal Shutdown
System ESD on LIN Pin Exceeding 10 kV, No Need for External ESD Protections
Load Dump Protection (45 V)
Integrated Slope Control Resulting into Excellent EME Performance also without any Capacitor on LIN Pin
Excellent EMI Performance
Remote Wake-up via LIN Bus on all Four Channels
3.3 V and 5 V Compatible Digital Inputs
