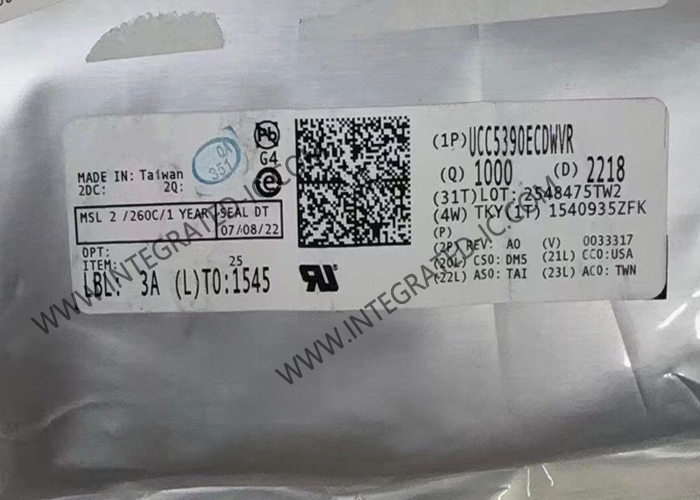

Product Description Of UCC5390ECDWVR
UCC5390ECDWVR is single-channel, isolated gate drivers designed to drive MOSFETs, IGBTs and SiC MOSFETs. The UCC5390ECDWVR has its UVLO2 referenced to GND2 to get a true UVLO reading.
Specification Of UCC5390ECDWVR
- 40 C
+ 125 C
1.04 W
100 ns
10 ns
10 ns
Number of Drivers:
1 Driver
Number of Outputs:
1 Output
Operating Supply Current:
1.67 mA
Output Current:
10 A
Output Voltage:
13.2 V to 33 V
Supply Voltage - Max:
15 V
Supply Voltage - Min:
3 V
Unit Weight:
387.100 mg
Feature Of UCC5390ECDWVR
Feature options
UVLO referenced to GND2 (UCC53x0E)
8-pin D (4mm creepage) and DWV (8.5mm creepage) package
60ns (typical) propagation delay
100kV/µs minimum CMTI
Isolation barrier life > 40 Years
3V to 15V input supply voltage
Up to 33V driver supply voltage
8V and 12V UVLO options
Negative 5V handling capability on input pins
Safety-related certifications:
7000VPK isolation DWV (planned) and 4242VPK isolation D per DIN V VDE V 0884-11:2017-01 and DIN EN 61010-1
5000VRMS DWV and 3000VRMS D isolation rating for 1 minute per UL 1577
CQC certification per GB4943.1-2011 D and DWV (planned)
CMOS inputs
Operating temperature: –40°C to +125°C
Application Of UCC5390ECDWVR
Motor drives
High voltage DC-to-DC converters
UPS and PSU
HEV and EV power modules
Solar inverters
