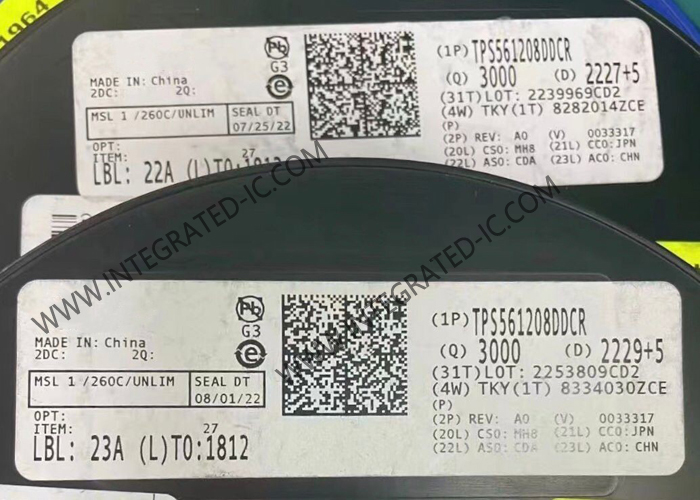

TPS561208DDCR Integrated Circuit Chip Synchronous Step Down Converter 1A Buck Regulator

TPS561208DDCR Integrated Circuit Chip Synchronous Step Down Converter 1A Buck Regulator

Product Description Of TPS561208DDCR

TPS561208DDCR is simple, easy-to-use, 1-A synchronous step-down converters in SOT-23 package. TPS561208DDCR is optimized to operate with minimum external component counts and also optimized to achieve low standby current.

Specification Of TPS561208DDCR

Features Of TPS561208DDCR

1A converter integrated 140-mΩ and 84-mΩ FETs
D-CAP2™ mode control with fast transient response
Input voltage range: 4.5 V to 17 V
Output voltage range: 0.76 V to 7 V
Pulse-skip mode (TPS561201) or continuous current mode (TPS561208)
580-kHz switching frequency
Low shutdown current less than 10 µA
2% Feedback voltage accuracy (25°C)
Start-up from pre-biased output voltage
Cycle-by-cycle overcurrent limit
Hiccup-mode overcurrent protection
Non-latch UVP and TSD protections
Fixed soft start: 1.0 ms

Applications Of TPS561208DDCR
Digital TV power supply
High definition Blu-ray™ disc players
Networking home terminal
Digital set-top box (STB)
Surveillance
