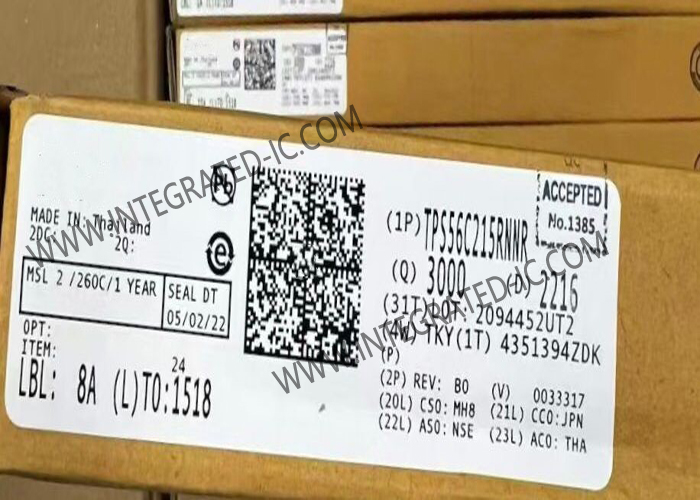

TPS56C215RNNR Integrated Circuit Chip 12A Synchronous Step-Down SWIFT™ Converter

TPS56C215RNNR Integrated Circuit Chip 12A Synchronous Step-Down SWIFT™ Converter

Product Description Of TPS56C215RNNR
TPS56C215RNNR is a small monolithic 12A synchronous buck converter with an adaptive on-time D-CAP3 control mode. The device integrates low RDS(on) power MOSFETs that enable high efficiency and offers ease-of-use with minimum external component count for space-conscious power systems. Competitive features include a very accurate reference voltage, fast load transient response, auto-skip mode operation for light load efficiency, adjustable current limit and no requirement for external compensation.

Specification Of TPS56C215RNNR

Feature Of TPS56C215RNNR
Integrated 7.8mΩ and 3.2mΩ MOSFETs
Supports 12A continuous IOUT
4.5V start-up without external 5.0V bias
0.6V ±-1% reference voltage across full temperature range
0.6V to 5.5V output voltage range
Supports ceramic output capacitors
D-CAP3™ control mode for fast transient response
Selectable forced continuous conduction mode (FCCM) for tight output voltage ripple or auto-skipping Eco-mode for high light-load efficiency
Selectable FSW of 400kHz, 800kHz, and 1.2MHz
Monotonic start-up into prebiased outputs
Two adjustable current limit settings with hiccup re-start
Optional external 5V bias for enhanced efficiency
Adjustable soft start with a default 1ms soft-start time
–40°C to 150°C operating junction temperature
Small 3.5mm × 3.5mm HotRod™ QFN package

Applications Of TPS56C215RNNR
Server, cloud-computing, storage
Telecom and networking, point-of-load (POL)
IPCs, factory automation, PLC, test measurement
High-end DTV

Other Electronic Components In Stock

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
