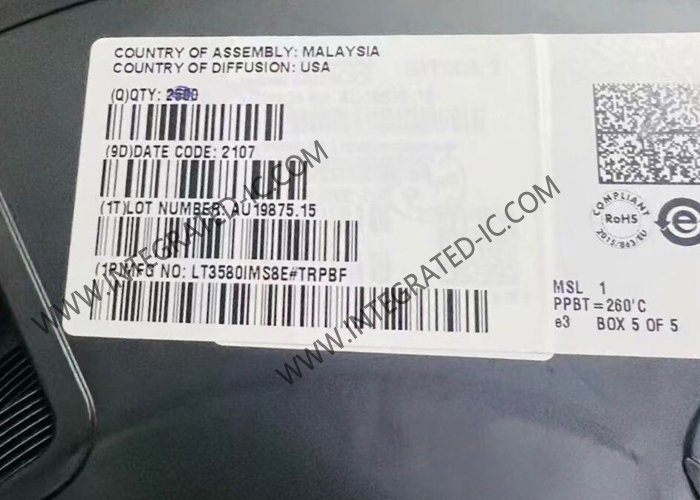

LT3580IMS8E Integrated Circuit Chip Synchronization Boost Inverting DC/DC Converter

LT3580IMS8E Integrated Circuit Chip Synchronization Boost Inverting DC/DC Converter

Product Description Of LT3580IMS8E
The LT3580 is a PWM DC/DC converter containing an internal 2A, 42V switch. The LT3580 can be configured as either a boost, SEPIC or inverting converter. Capable of generating 12V at 550mA or –12V at 350mA from a 5V input, the LT3580 is ideal for many local power supply designs.

Specification Of LT3580IMS8E

Feature Of LT3580IMS8E
2A Internal Power Switch
Adjustable Switching Frequency
Single Feedback Resistor Sets VOUT
Synchronizable to External Clock
High Gain SHDN Pin Accepts Slowly Varying Input Signals
Wide Input Voltage Range: 2.5V to 32V
Low VCESAT Switch: 300mV at 1.5A (Typical)
Integrated Soft-Start Function
Easily Configurable as a Boost or Inverting Converter
User Configurable Undervoltage Lockout (UVLO)
Tiny 8-Lead 3mm × 3mm DFN and 8-Lead MSOP Packages

Applications Of LT3580IMS8E
VFD Bias Supplies
TFT-LCD Bias Supplies
GPS Receivers
DSL Modems
Local Power Supply

Other Electronic Components In Stock

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
