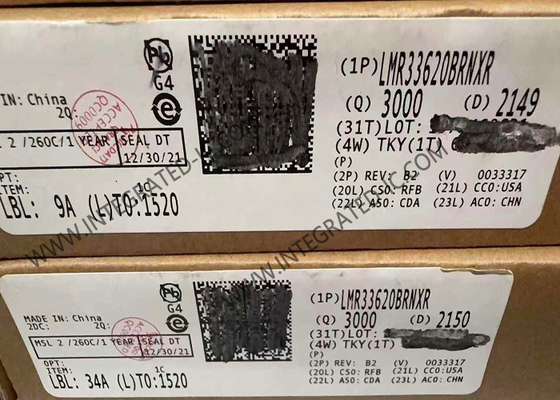

LMR33620BRNXR Integrated Circuit Chip 3.8V To 36V 2A Synchronous Buck Converter With Ultra-Low EMI
LMR33620BRNXR Integrated Circuit Chip 3.8V To 36V 2A Synchronous Buck Converter With Ultra-Low EMI
Description
Part Number:
LMR33620BRNXR
Output Voltage::
1 V To 24 V
Output Current::
2 A
Number Of Outputs::
1 Output
Input Voltage - Min::
3.8 V
Input Voltage - Max::
36 V
Highlight:
LMR33620BRNXR
,
LMR33620BRNXR Integrated Circuit Chip
,
2A Synchronous Buck Converter
LMR33620BRNXR Integrated Circuit Chip 3.8V To 36V 2A Synchronous Buck Converter With Ultra-Low EMI
Product Description Of LMR33620BRNXR
LMR33620BRNXR SIMPLE SWITCHER regulator is an easy-to-use, synchronous, step-down DC/DC converter that delivers best-in-class efficiency for rugged industrial applications. The LMR33620BRNXR drives up to 2 A of load current from an input of up to 36 V. The LMR33620BRNXR provides high light load efficiency and output accuracy in a very small solution size. Features such as a power-good flag and precision enable provide both flexible and easy-to-use solutions for a wide range of applications. The LMR33620BRNXR automatically folds back frequency at light load to improve efficiency.
Specification Of LMR33620BRNXR
1 V to 24 V
2 A
1 Output
3.8 V
36 V
25 uA
1.4 MHz
- 40 C
+ 125 C
Input Voltage:
3.8 V to 36 V
Supply Voltage - Min:
3.8 V
Feature Of LMR33620BRNXR
Functional Safety-Capable
Documentation available to aid functional safety system design
Configured for rugged industrial applications
Input voltage range: 3.8 V to 36 V
Output voltage range: 1 V to 24 V
Output current: 2 A
Peak-current-mode control
Short minimum on-time of 68 ns
Frequency: 400 kHz, 1.4 MHz, 2.1 MHz
Junction temperature range –40°C to +125°C
Low EMI and low switching noise
Integrated compensation network
Low EMI and switching noise
HotRod™ package
Parallel input current paths
High power conversion at all loads
Peak efficiency > 95%
Low operating quiescent current of 25 µA
Flexible system interface
Power-good flag and precision enable
Use TPSM53602 module for faster time to market
Create a custom design using the LMR33620 with the WEBENCH Power Designer
Application Of LMR33620BRNXR
Motor drive systems: drones, AC inverters, VF drives, servos
Factory and building automation systems: PLC CPU, HVAC control, elevator control
General purpose wide VIN powers
