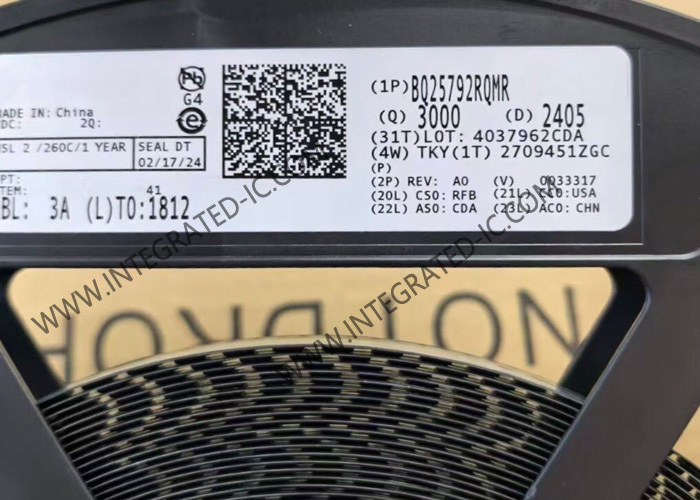

BQ25792RQMR Integrated Circuit Chip 5A 1-4 Cell Buck Boost Battery Charger IC

BQ25792RQMR Integrated Circuit Chip 5A 1-4 Cell Buck Boost Battery Charger IC

Product Description Of BQ25792RQMR

BQ25792RQMR is a fully integrated switch-mode buck -boost charger for 1-4 cell Li-ion batteries and Li-polymer batteries. The integration includes 4 switching MOSFETs (Q1, Q2, Q3, Q4), input and charging current sensing circuits, the battery FET (QBAT) and all the loop compensation of the buck-boost converter.

Specification Of BQ25792RQMR

Features Of BQ25792RQMR

High power density, high integration buck-boost charger for 1-4 cell batteries supporting any USB PD 3.0 profile
– Integrates four switching MOSFETs, BATFET
– Integrates input and charging current sensing
Highly efficient
– 750-kHz or 1.5-MHz switching frequencies
– 5-A charging current with 10-mA resolution
96.5% efficient: 16-V battery at 3A from 20V
Supports a wide range of input sources
– 3.6-V to 24-V wide input operating voltage range with 30-V absolute maximum rating
– Maximum power tracking with input voltage dynamic power management (VINDPM) up to 22 V and input current dynamic power management (IINDPM) up to 3.3 A
– Detects USB BC1.2, SDP, CDP, DCP, HVDCP and non-standard adapters
Dual-input power mux controller (optional) for source selection
Narrow voltage DC (NVDC) power path management
Powers USB port from battery (USB OTG)
– 2.8-V to 22-V OTG output voltage with 10-mV resolution to support USB-PD PPS
– OTG output current regulation up to 3.32 A with 40-mA resolution
Flexible autonomous and I2C mode for optimal system performance
Integrated 16-bit ADC for voltage, current, and temperature monitoring
Low battery quiescent current
– 21 µA for battery only operation
– 600 nA in Charger Shutdown Mode
High accuracy
– +0.65% to -0.85% charge voltage regulation for 2S-4S batteries
– ±5% charge current regulation
– ±5% input current regulation
Package
– 29-Pin 4 mm × 4 mm QFN

Applications Of BQ25792RQMR
Video doorbell, Smart home control
Data concentrators, Robotic lawn mower, Vacuum robot
Asset tracking, Mobile POS
Multiparameter patient monitor, Electrocardiogram (ECG), Ultrasound smart probe
