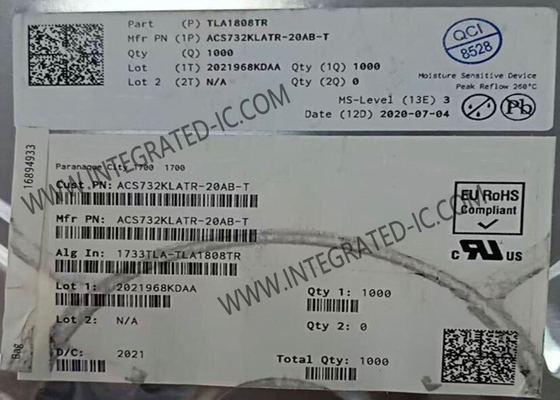

ACS732KLATR-20AB-T Sensor IC 1MHz Bandwidth Galvanically Isolated Current Sensors With Overcurrent Fault Detection
ACS732KLATR-20AB-T Sensor IC 1MHz Bandwidth Galvanically Isolated Current Sensors With Overcurrent Fault Detection
Description
Part Number:
ACS732KLATR-20AB-T
Current Rating::
25 MA
Frequency Range::
1 MHz
Maximum Operating Temperature::
+ 125 C
Minimum Operating Temperature::
- 40 C
Supply Voltage - Max::
5.5 V
ACS732KLATR-20AB-T Sensor IC 1MHz Bandwidth Galvanically Isolated Current Sensors With Overcurrent Fault Detection
Product Description Of ACS732KLATR-20AB-T
ACS732KLATR-20AB-T current sensors provide high-bandwidth (1MHz) current sensing with user-configurable overcurrent fault detection and galvanic isolation. The ACS732KLATR-20AB-T is designed for 5V operation.
Specification Of ACS732KLATR-20AB-T
25 mA
Current Sense
1 MHz
Maximum Operating Temperature:
+ 125 C
Minimum Operating Temperature:
- 40 C
Supply Voltage - Max:
5.5 V
Supply Voltage - Min:
4.5 V
Feature Of ACS732KLATR-20AB-T
AEC-Q100 automotive qualified
High bandwidth, 1 MHz analog output
Differential Hall sensing rejects common-mode fields
High-isolation SOIC16 wide body package provides galvanic isolation for high-voltage applications
Industry-leading noise performance with greatly improved bandwidth through proprietary amplifier and filter design
UL60950-1 (ed. 2) certified
Dielectric Strength Voltage = 3.6 kVRMS
Basic Isolation Working Voltage = 616 VRMS
Fast and externally configurable overcurrent fault detection
1 mΩ primary conductor resistance for low power loss and high inrush current withstand capability
Options for 3.3 V and 5 V single supply operation
Output voltage proportional to AC and DC current
Factory-trimmed sensitivity and quiescent output voltage for improved accuracy
Nearly zero magnetic hysteresis
Ratiometric output from supply voltage
Other Supply Product Types
Part Number
Package
DRA821U2CGBALMR
433-FCBGA
AM6254ATGFHIAMCRQ1
441-FCBGA
LMK1D1216RGZR
48-VQFN
LMK1C1108PWR
16-TSSOP
2EDN7534R
TSSOP-8
2EDF7275K
TFLGA-13
2EDN8534R
TSSOP-8
2ED2101S06F
DSO-8
TDA21590
QFN-39
2EDN7533R
TSSOP-8
1ED3461MC12M
DSO-16
2EDN7434R
TSSOP-8
2ED21094S06J
DSO-14
TLE9180D31QK
LQFP-64
TLE75004EPD
TSDSO-14
1EDI2010AS
DSO-36
1EDN7512G
WSON-6
TLE9183QK
LQFP-64
2EDS8165H
DSO-16
2EDN7534B
SOT-23-6
2EDN8533F
DSO-8
1EDI60H12AH
DSO-8
1EDB9275F
DSO-8
1EDI3020AS
DSO-20
2ED21084S06J
DSO-14
ISO2H823V25
VQFN-70
1EDC20I12AH
DSO-8
1EDS5663H
DSO-16
1EDC60I12AH
DSO-8
TDA21490
QFN-39
