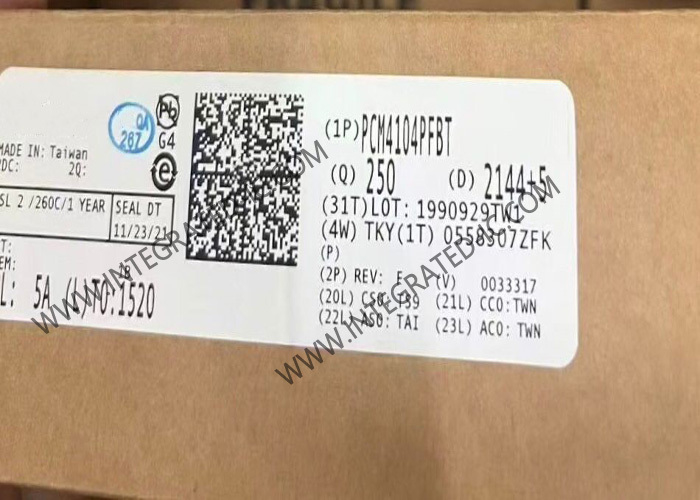

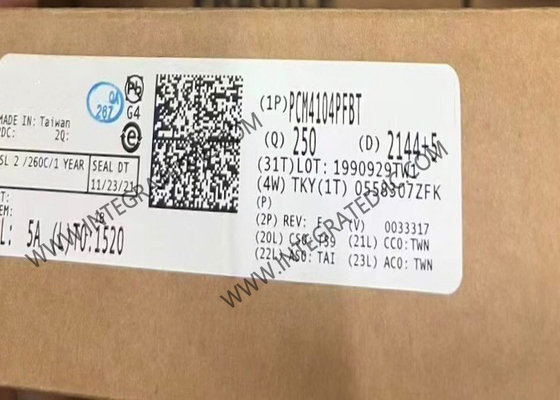

PCM4104PFBT Integrated Circuit Chip 118dB Audio DAC 24Bit Digital To Analog Converter

PCM4104PFBT Integrated Circuit Chip 118dB Audio DAC 24Bit Digital To Analog Converter

Product Overviews Of PCM4104PFBT

PCM4104PFBT is a high-performance, four-channel digital-to-analog (D/A) converter designed for use in professional audio applications.
PCM4104PFBT supports 16- to 24-bit linear PCM input data, with sampling frequencies up to 216kHz. The PCM4104PFBT features lower power than most comparable stereo audio D/A converters, making it ideal for use in high channel count applications by lowering the overall power budget required for D/A conversion sub-system.

Specification Of PCM4104PFBT

Features Of PCM4104PFBT

Four High-Performance, Multi-Level, Delta-Sigma Digital-to-Analog Converters
Differential Voltage Outputs
− Full-Scale Output (Differential): 6.15VPP
Supports Sampling Frequencies up to 216kHz
Typical Dynamic Performance (24-Bit Data)
− Dynamic Range (A-Weighted): 118dB
− THD+N: −100dB
Linear Phase, 8x Oversampling Digital Interpolation Filter
Digital De-Emphasis Filters for 32kHz, 44.1kHz, and 48kHz Sampling Rates
Soft Mute Function
− All-Channel Mute via the MUTE Input Pin
− Per-Channel Mute Available in Software Mode
Digital Attenuation (Software Mode Only)
− Attenuation Range: 0dB to −119.5dB
− 256 Steps with 0.5dB per Step
Output Phase Inversion (Software Mode Only)
Zero Data Mute (Software Mode Only)
Audio Serial Port
− Supports Left-Justified, Right-Justified, I2S
, and TDM Data Formats
− Accepts 16-, 18-, 20, and 24-Bit Two’s Complement PCM Audio Data
Standalone or Software-Controlled Configuration Modes
Four-Wire Serial Peripheral Interface (SPI
) Port Provides Control Register Access in Software Mode
Power Supplies: +5V Analog, +3.3V Digital
Power Dissipation
− 203mW typical with fS = 48kHz
− 220mW typical with fS = 96kHz
− 236mW typical with fS = 192kHz
Power-Down Modes
Small 48-Lead TQFP Package

Applications Of PCM4104PFBT

Digital Mixing Consoles
Digital Audio Workstations
Digital Audio Effects Processors
Broadcast Studio Equipment
Surround-Sound Processors
High-End A/V Receivers
