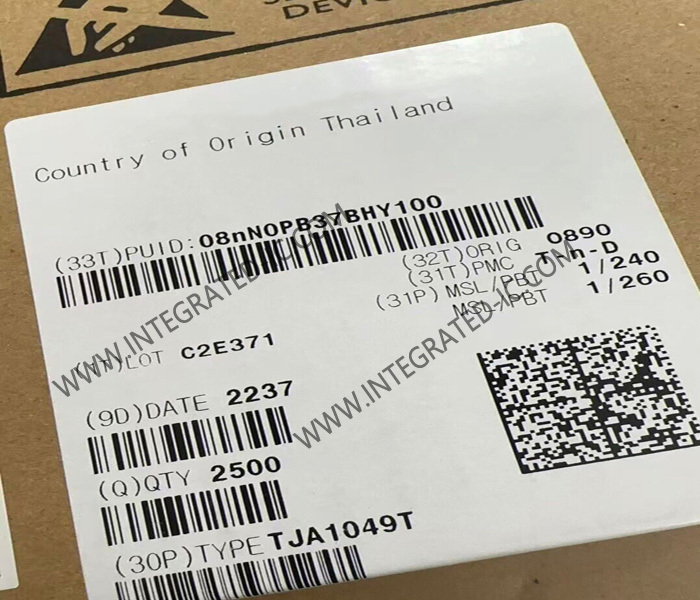

TJA1049T Integrated Circuit Chip High-Speed CAN Transceivers With Standby Mode

TJA1049T Integrated Circuit Chip High-Speed CAN Transceivers With Standby Mode

Product Description Of TJA1049T
TJA1049T high-speed CAN transceiver provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver is designed for high-speed CAN applications in the automotive industry, supplying the differential transmit and receive capability to (a microcontroller with) a CAN protocol controller.

Specification Of TJA1049T

Feature Of TJA1049T
Fully ISO 11898-2:2003 and ISO 11898-5:2007 compliant
Timing guaranteed for data rates up to 5 Mbit/s in the CAN FD fast phase
Suitable for 12 V and 24 V systems
Low electromagnetic emission (EME) and high ElectroMagnetic Immunity (EMI)
VIO input on TJA1049T/3 and TJA1049TK/3 allows for direct interfacing with 3 V to 5 V microcontrollers
SPLIT voltage output on TJA1049T and TJA1049TK for stabilizing recessive bus level
Both variants available in SO8 and HVSON8 packages
Leadless HVSON8 package (3.0 mm × 3.0 mm) with improved Automated Optical Inspection (AOI) capability
AEC-Q100 qualified
Dark green product (halogen free and Restriction of Hazardous Substances (RoHS) compliant)
Low-power management
Very low-current Standby mode with host and bus wake-up capability
Functional behavior predictable under all supply conditions
Transceiver disengages from the bus when not powered up (zero load)
Protection
High ESD handling capability on the bus pins
Bus pins protected against transients in automotive environments
Transmit Data (TXD) dominant time-out function
Bus-dominant time-out function in Standby mode
Undervoltage detection on pins VCC and VIO
Thermally protected
