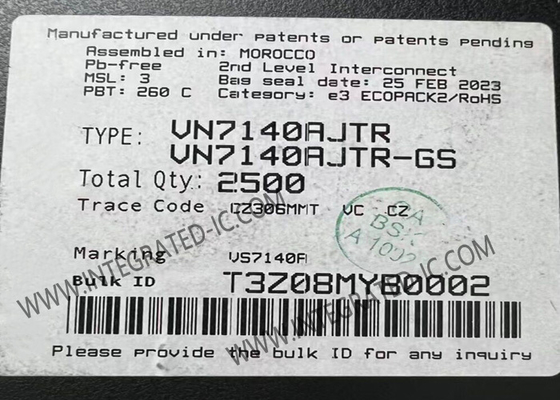

VN7140AJTR Integrated Circuit Chip High-Side Driver With MultiSense Analog Feedback For Automotive Applications

VN7140AJTR Integrated Circuit Chip High-Side Driver With MultiSense Analog Feedback For Automotive Applications

Product Description Of VN7140AJTR
VN7140AJTR is single channel high-side drivers manufactured using ST proprietary VIPower M0-7 technology and housed in PowerSSO-16 and SO-8 packages. The devices are designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOS-compatible interface, and to provide protection and diagnostics.

VN7140AJTR integrate advanced protective functions such as load current limitation, overload active management by power limitation and overtemperature shutdown with configurable latch-off.

Specification Of VN7140AJTR

Feature Of VN7140AJTR
AEC-Q100 qualified
General
Single channel smart high-side driver with MultiSense analog feedback
Very low standby current
Compatible with 3 V and 5 V CMOS outputs
MultiSense diagnostic functions
Multiplexed analog feedback of: load current with high precision proportional current mirror, VCC supply voltage and TCHIP device temperature
Overload and short to ground (power limitation) indication
Thermal shutdown indication
OFF-state open-load detection
Output short to VCC detection
Sense enable/disable
Protections
Undervoltage shutdown
Overvoltage clamp
Load current limitation
Self limiting of fast thermal transients
Configurable latch-off on overtemperature or power limitation with dedicated fault reset pin
Loss of ground and loss of VCC
Reverse battery with external components
Electrostatic discharge protection
