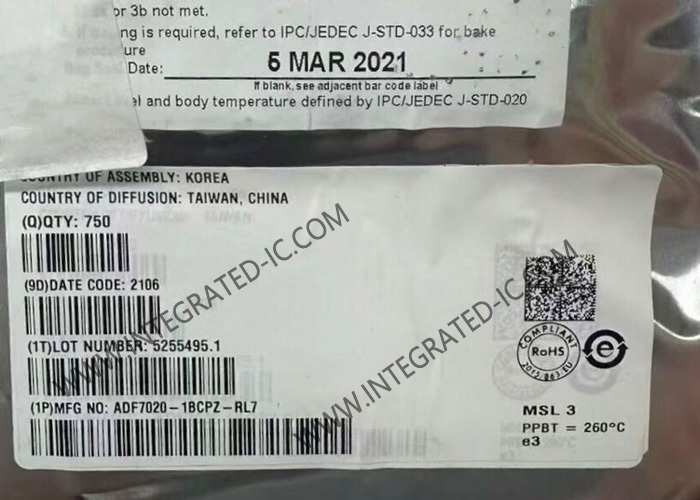

ADF7020-1BCPZ Wireless Communication Module 200kbps High Performance FSK/ASK Transceiver IC

ADF7020-1BCPZ Wireless Communication Module 200kbps High Performance FSK/ASK Transceiver IC​

Product Overviews Of ADF7020-1BCPZ

ADF7020-1BCPZ is a low power, highly integrated FSK/ GFSK/ ASK/ OOK/ GOOK transceiver designed for operation in the low UHF and VHF bands.
ADF7020-1BCPZ uses an external VCO inductor that allows users to set the operating frequency anywhere between 135 MHz and 650 MHz. Using the divide-by-2 circuit allows users to operate the device as low as 80 MHz. The typical range of the VCO is about 10% of the operating frequency.

Specification Of ADF7020-1BCPZ

Features Of ADF7020-1BCPZ

Low power, low IF transceiver
Frequency bands
135 MHz to 650 MHz, direct output
80 MHz to 325 MHz, divide-by-2 mode
Data rates supported
0.15 kbps to 200 kbps, FSK
0.15 kbps to 64 kbps, ASK
2.3 V to 3.6 V power supply
Programmable output power
−20 dBm to +13 dBm in 63 steps
Receiver sensitivity
−119 dBm at 1 kbps, FSK, 315 MHz
−114 dBm at 9.6 kbps, FSK, 315 MHz
−111.8 dBm at 9.6 kbps, ASK, 315 MHz
Low power consumption
17.6 mA in receive mode
21 mA in transmit mode (10 dBm output)
On-chip VCO and fractional-N PLL
On-chip 7-bit ADC and temperature sensor
Fully automatic frequency control loop (AFC) compensates for lower tolerance crystals
Digital RSSI
Integrated TRx switch
Leakage current <1 µA in power-down mode

Applications Of ADF7020-1BCPZ

Low cost wireless data transfer
Wireless medical applications
Remote control/security systems
Wireless metering
Keyless entry
Home automation
Process and building control
