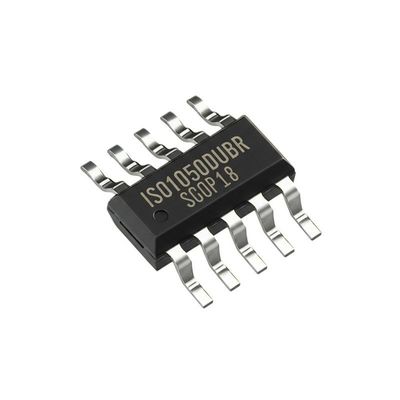

ISO1050DUBR Integrated Circuit Chip 5V Isolated CAN Transceiver SOP-8 Package

ISO1050DUBR Integrated Circuit Chip 5V Isolated CAN Transceiver SOP-8 Package
ISO1050DUBR Integrated Circuit Chip 5V Isolated CAN Transceiver SOP-8 Package ISO1050DUBR Integrated Circuit Chip 5V Isolated CAN Transceiver SOP-8 Package

Large Image :  ISO1050DUBR Integrated Circuit Chip 5V Isolated CAN Transceiver SOP-8 Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ISO1050DUBR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOP-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

ISO1050DUBR Integrated Circuit Chip 5V Isolated CAN Transceiver SOP-8 Package

Description
Part Number: ISO1050DUBR Number Of Channels:: 1 Channel
Data Rate:: 1 Mb/s Isolation Voltage:: 2500 Vrms
Supply Voltage - Max:: 5.5 V Supply Voltage - Min:: 3 V
Highlight:

5V isolated CAN transceiver

,

SOP-8 CAN transceiver chip

,

ISO1050DUBR integrated circuit

ISO1050DUBR Integrated Circuit Chip 5V Isolated CAN Transceiver SOP-8 Package
Product Description
The ISO1050DUBR is a galvanically isolated CAN transceiver compliant with ISO11898-2 standard specifications. Featuring silicon oxide (SiO2) insulation barrier technology, it provides galvanic isolation up to 2500 VRMS. When used with isolated power supplies, this device effectively prevents noise currents from data buses or other circuits from interfering with sensitive local circuitry.
Specifications
Parameter Value
Number of Channels 1 Channel
Polarity Unidirectional
Data Rate 1 Mb/s
Isolation Voltage 2500 Vrms
Isolation Type Capacitive Coupling
Supply Voltage Range 3 V to 5.5 V
Operating Supply Current 52 mA
Propagation Delay Time 74 ns
Operating Temperature Range -55°C to +105°C
Output Current ±70 mA
Power Dissipation 200 mW
Unit Weight 2 g
Key Features
  • Compliant with ISO11898-2 requirements
  • 2500-VRMS isolation rating
  • Fail-safe outputs for enhanced reliability
  • Low loop delay: 150 ns (typical)
  • High transient immunity: 50-kV/µs typical
  • Wide bus-fault protection range: -27 V to 40 V
  • Driver (TXD) dominant time-out function
  • Supports both 3.3 V and 5 V microprocessor I/O voltages
Applications
Industrial automation, control systems, sensors, and drive systems; Building automation (HVAC); Security systems; Transportation; Medical equipment; Telecommunications; CAN bus standards including CANopen, DeviceNet, NMEA2000, ARINC825, ISO11783, CAN Kingdom, and CANaerospace.
