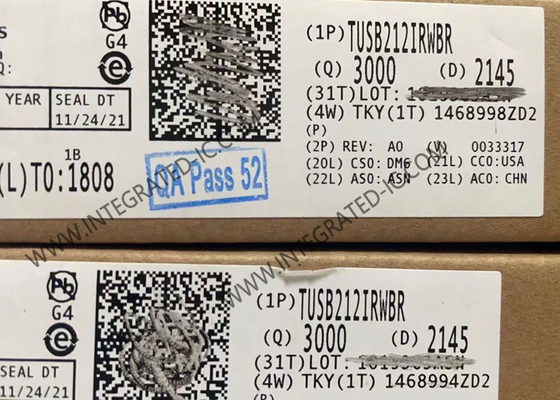

TUSB212IRWBR Integrated Circuit Chip USB 2.0 High Speed Signal Conditioner With DC Boost

TUSB212IRWBR Integrated Circuit Chip USB 2.0 High Speed Signal Conditioner With DC Boost

Product Description Of TUSB212IRWBR
TUSB212IRWBR is a USB High-Speed (HS) signal conditioner, designed to compensate for ISI signal loss in a transmission channel.

TUSB212IRWBR has a patent-pending design which is agnostic to USB Low Speed (LS) and Full Speed (FS) signals. LS and FS signal characteristics are unaffected by the TUSB212IRWBR while HS signals are compensated.

Specification Of TUSB212IRWBR

Feature Of TUSB212IRWBR
Compatible with USB 2.0, OTG 2.0 and BC 1.2
Pin strap or I2C configurable
Support for LS, FS, HS signaling
Ultra-low USB Disconnect and Shutdown Power Consumption
Selectable Signal Gain Via Daisy Chain Device for High Loss Applications
D1P/M and D2P/M Interchangeable and Host/Device Agnostic
Supports up to 5m pre-channel or 2m post-channel Cable Length
Four Selectable AC Boost Settings Via External Pulldown Resistor
DC Boost Along With AC Boost for Best Signal Integrity

Applications Of TUSB212IRWBR
Notebooks
Desktops
Docking Stations
Tablets
Cell Phones
Active Cable, Cable Extenders
Backplane
Televisions

Other Electronic Components In Stock

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
