Product Description Of MINI-MSDF000F

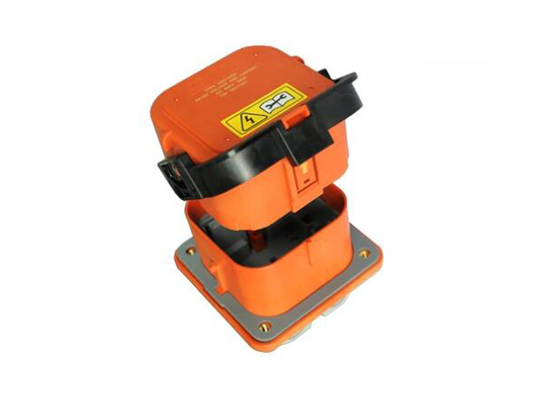

MINI-MSDF000F is EV Connectors——MINI MSD Receptacle front mounting, rated voltage is 1,000V.

Specification Of MINI-MSDF000F

Features Of MINI-MSDF000F

Mechanical
Mating cycles: ≥ 50 cycles
Fuse specification: up to 630A
With fuse:
Rated current: Current is approximately 1/3 the fuse rating
Rated voltage: 500V DC to 600V DC
With shunt:
Rated current: 260A Max @ Ambient 70°C
Rated voltage: 1000V DC Max
A two-stage lever provides an HVIL time delay
2 x integrated internal HVIL
Unique cooling structure
Dual-channel design lowers temperature rise
No tools required to unmate
Various fuse ratings
Receptacle

Applications Of MINI-MSDF000F

MINI-MSDF000F is a tool-free solution for disconnecting the internal high voltage battery pack and protecting it from short circuit.
