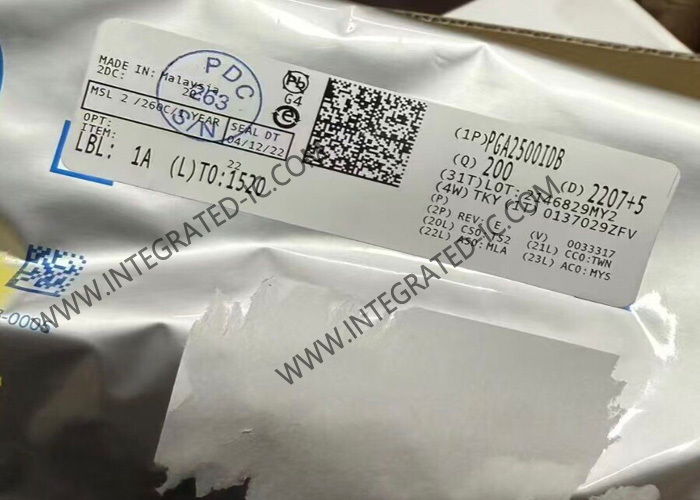

PGA2500IDB Integrated Circuit Chip Digitally Controlled Microphone Preamplifier SSOP28

PGA2500IDB Integrated Circuit Chip Digitally Controlled Microphone Preamplifier SSOP28​

Product Description Of PGA2500IDB

PGA2500IDB is a digitally controlled, analog microphone preamplifier designed for use as a front end for highperformance audio analog-to-digital (A/D) converters.

PGA2500IDB features include low noise, wide dynamic range, and a differential signal path. An on-chip DC servo loop is employed to minimize DC offset, while a common-mode servo function may be used to enhance common-mode rejection.

Specification Of PGA2500IDB

Features Of PGA2500IDB

Fully Differential Input-to-Output Architecture
Digitally Controlled Gain Using Serial Port Interface:
− Gain Range: 10dB through 65dB, 1dB per step
− Unity (0dB) Gain Setting via Serial Port or Dedicated Control Pin
Dynamic Performance:
− Equivalent Input Noise with ZS = 150Ω and Gain = 30dB: −128dBu
− Total Harmonic Distortion plus Noise (THD+N) with Gain = 30dB: 0.0004%
Zero Crossing Detection Minimizes Audible Artifacts when Gain Switching
Integrated DC Servo Minimizes Output Offset Voltage
Common-Mode Servo Improves CMRR
Four-Wire Serial Control Port Interface:
− Simple Interface to Microprocessor or DSP Serial Ports
− Supports Daisy-Chaining of Multiple PGA2500 Devices
Dedicated Input Pin for Selecting Unity Gain
Overload Output Pin Provides Clipping Indication
Four General-Purpose Digital Outp

Applications Of PGA2500IDB

Microphone Preamplifiers and Mixers
Digital Mixers and Recorders
