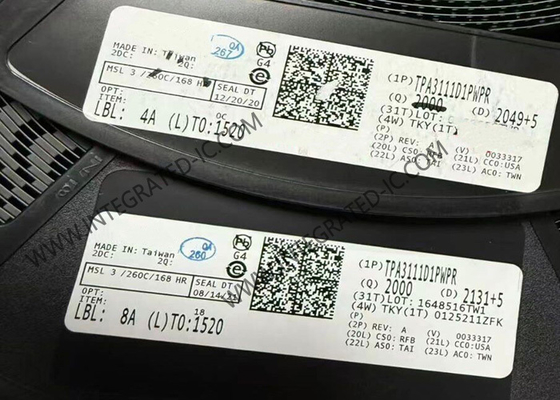

TPA3111D1PWPR Integrated Circuit Chip 10W Filter-Free Mono Class-D Audio Power Amplifier With Speaker Guard™

TPA3111D1PWPR Integrated Circuit Chip 10W Filter-Free Mono Class-D Audio Power Amplifier With Speaker Guard™

Product Description Of TPA3111D1PWPR
TPA3111D1PWPR device is a 10-W, efficient, Class-D audio power amplifier for driving a bridge tied speaker. Advanced EMI suppression technology enables the use of inexpensive ferrite bead filters at the outputs while meeting EMC requirements. SpeakerGuard speaker protection system includes an adjustable power limiter and a DC detection circuit. The adjustable power limiter lets the user to set a virtual voltage rail lower than the chip supply to limit the current through the speaker. The DC Detect circuit measures the frequency and amplitude of the PWM signal and shuts off the output stage if the input capacitors are damaged or shorts exist on the inputs.

Specification Of TPA3111D1PWPR

Features Of TPA3111D1PWPR
10-W into an 8-Ω Load at 10% THD+N From a 12-V Supply
7-W into an 4-Ω Load at 10% THD+N From a 8-V Supply
94% Efficient Class-D Operation into 8-Ω Load Eliminates Need for Heat Sinks
Wide Supply Voltage Range Allows Operation from 8 to 26 V
Filter-Free Operation
SpeakerGuard™ Speaker Protection Includes Adjustable Power Limiter Plus DC Protection
Flow-Through Pinout Facilitates Easy Board Layout
Robust Pin-to-Pin Short-Circuit Protection and Thermal Protection With Auto-Recovery Option
Excellent THD+N and Pop-Free Performance
Four Selectable, Fixed Gain Settings
Differential Inputs

Applications Of TPA3111D1PWPR
Televisions
Monitors and Laptops
Consumer Audio Equipment
