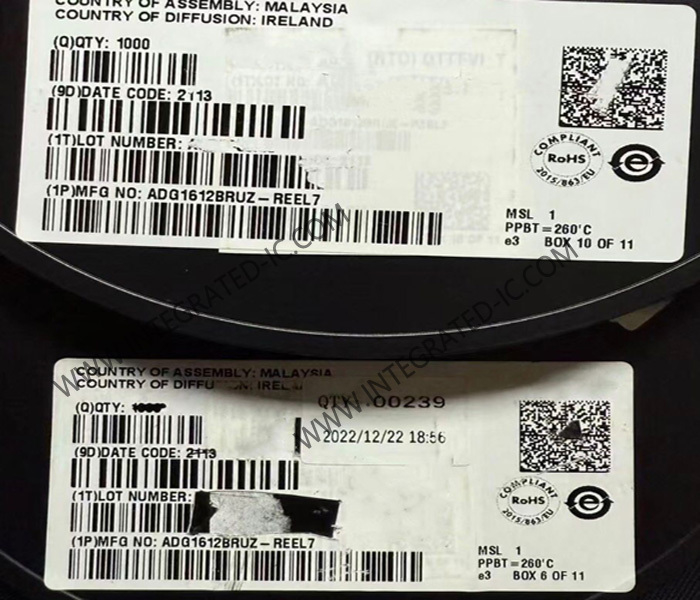

ADG1612BRUZ Integrated Circuit Chip 1 Ω Quad Single-Pole/Single-Throw Switches

ADG1612BRUZ Integrated Circuit Chip 1 Ω Quad Single-Pole/Single-Throw Switches

Product Description Of ADG1612BRUZ

ADG1612BRUZ contain four independent single-pole/single-throw (SPST) switches. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.

Specification Of ADG1612BRUZ

Features Of ADG1612BRUZ
1 Ω typical on resistance
0.2 Ω on resistance flatness
±3.3 V to ±8 V dual-supply operation
3.3 V to 16 V single-supply operation
No VL supply required
3 V logic-compatible inputs
Rail-to-rail operation
See data sheet for additional features

Product Highlights Of ADG1612BRUZ
1.6 Ω maximum on resistance over temperature
Minimum distortion: THD + N = 0.007%
3 V logic-compatible digital inputs: VINH = 2.0 V, VINL = 0.8 V
No VL logic power supply required.
Ultralow power dissipation: <16 nW
16-lead TSSOP and 16-lead, 4 mm × 4 mm LFCSP

Applications Of ADG1612BRUZ
Communication systems
Medical systems
Audio signal routing
Video signal routing
Automatic test equipment
Data acquisition systems
Battery-powered systems
Sample-and-hold systems
Relay replacements
