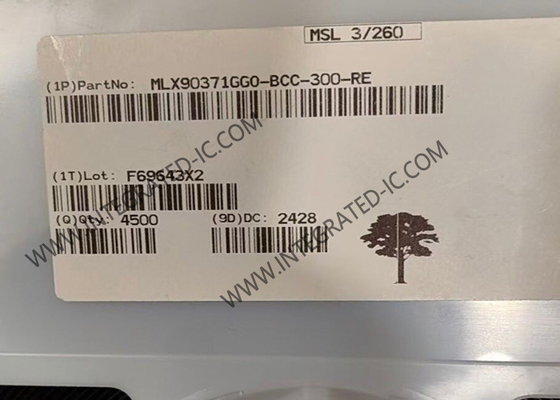

MLX90371GGO-BCC-300-RE Sensor IC Triaxis Performance Rotary And Linear Position Sensors

MLX90371GGO-BCC-300-RE Sensor IC Triaxis Performance Rotary And Linear Position Sensors​

Product Description Of MLX90371GGO-BCC-300-RE

MLX90371GGO-BCC-300-RE is a third generation Triaxis® position sensor IC. Thanks to an integrated magnetic concentrator (IMC) on its surface, the monolithic device senses, in a contactless fashion, the three spatial components (i.e. Bx, By and Bz) of the applied magnetic field allowing for the determination of rotary and linear movement.

Specification Of MLX90371GGO-BCC-300-RE

Features Of MLX90371GGO-BCC-300-RE

Robustness against stray-field up to 5mT
PCB-less dual die solution in SMP-4 package
Triaxis® Hall technology
Supported Output modes: Analog (ratiometric) or PWM (Pulse Width Modulation)
Programmable Linear Transfer Characteristic
Up to 32 programmable calibration points
Programmable measurement range
12-bit angular resolution
10-bit thermal accuracy
Operating temperature from -40°C to 160°C
On-chip signal processing for robust absolute position sensing
48 bits usable for customer traceability

Applications Of MLX90371GGO-BCC-300-RE

Absolute Rotary Position Sensor
Absolute Linear Position Sensor
Pedal Position Sensor
Throttle Position Sensor
Ride Height Position Sensor
Steering Wheel Position Sensor
Float-Level Sensor
Non-Contacting Potentiometer
