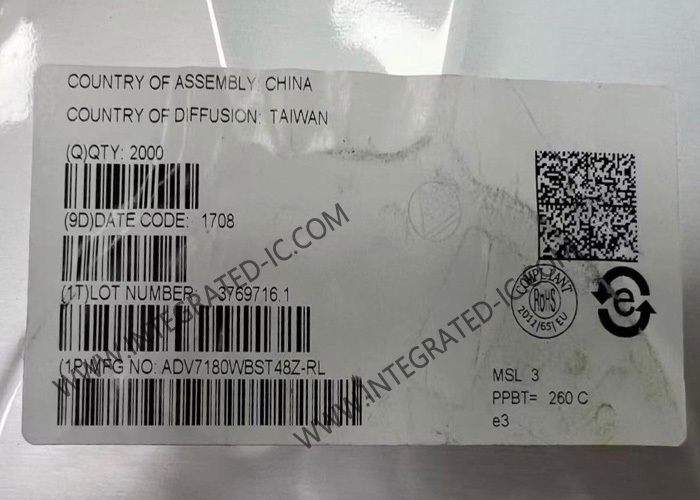

ADV7180WBST48Z Integrated Circuit Chip 10Bit SDTV Video Decoder LQFP48 IC Chips

ADV7180WBST48Z Integrated Circuit Chip 10Bit SDTV Video Decoder LQFP48 IC Chips

Product Description Of ADV7180WBST48Z

ADV7180WBST48Z is 10-Bit, 4× Oversampling SDTV Video Decoder IC.

ADV7180WBST48Z automatically detects and converts standard analog baseband television signals compatible with worldwide NTSC, PAL, and SECAM standards into 4:2:2 component video data compatible with the 8-bit ITU-R BT.656 interface standard.

Specification Of ADV7180WBST48Z

Features Of ADV7180WBST48Z

Worldwide NTSC/PAL/SECAM color demodulation support
One 10-bit ADC, 4× oversampling for CVBS, 2× oversampling for Y/C mode, and 2× oversampling for YPrPb (per channel)
3 video input channels with on-chip antialiasing filter
CVBS (composite), Y/C (S-Video), and YPrPb (component) video input support
5-line adaptive comb filters and CTI/DNR video enhancement
Mini-TBC functionality provided by adaptive digital line length tracking (ADLLT), signal processing, and enhanced FIFO management
Integrated AGC with adaptive peak white mode
Macrovision copy protection detection
NTSC/PAL/SECAM autodetection
1.0 V analog input signal range
Full-featured VBI data slicer with teletext support (WST)
Power-down mode and ultralow sleep mode current
2-wire serial MPU interface (I2C compatible)
Single 1.8 V supply possible
1.8 V analog, 1.8 V PLL, 1.8 V digital, 1.8 V to 3.3 V I/O supply
−10°C to +70°C commercial temperature grade
−40°C to +85°C industrial/automotive qualified temperature grade
−40°C to +125°C temperature grade for automotive qualified

Applications Of ADV7180WBST48Z
Digital camcorders and PDAs
Low cost SDTV PIP decoder for digital TVs
Multichannel DVRs for video security
AV receivers and video transcoding
PCI-/USB-based video capture and TV tuner cards
Personal media players and recorders
Smartphone/multimedia handsets
In-car/automotive infotainment units
Rearview camera/vehicle safety systems
