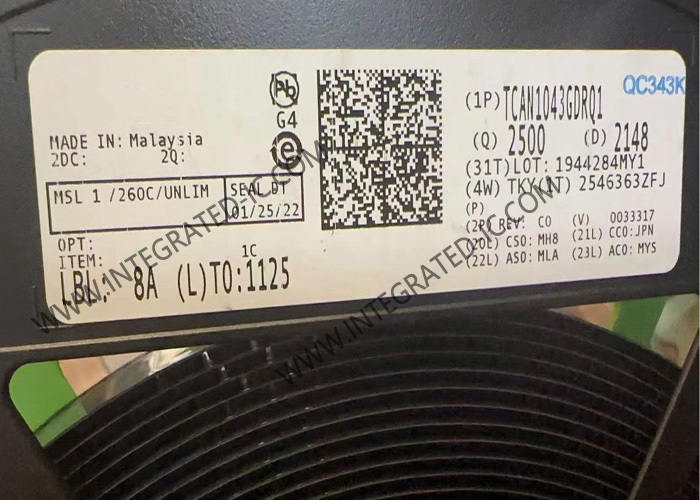

TCAN1043GDRQ1 Integrated Circuit Chip Automotive Low Power CAN Transceiver SOIC14

TCAN1043GDRQ1 Integrated Circuit Chip Automotive Low Power CAN Transceiver SOIC14​

Product Overviews Of TCAN1043GDRQ1

TCAN1043GDRQ1 physical layer requirements of the ISO 11898–2 (2016) High Speed Controller Area Network (CAN) specification providing an interface between the CAN bus and the CAN protocol controller. TCAN1043GDRQ1 support both classical CAN and CAN FD up to 2 megabits per second (Mbps).

Specification Of TCAN1043GDRQ1

Features Of TCAN1043GDRQ1

Support classic CAN and 2Mbps CAN FD (flexible data rate) and "G" options support 5Mbps
Short and symmetrical propagation delays and fast loop times for enhanced timing margin
Higher data rates in loaded CAN networks
VIO Level shifting supports 2.8V to 5.5V
Operating modes
Normal mode
Standby Mode with INH output and local and remote wake up request
Low power sleep mode with INH output and local and remote wake up request
Protection features
IEC ESD protection of bus terminals: ±8kV
Bus fault protection: ±58V (non-H variants) and ±70V (H variants)
Undervoltage protection on supply terminals
Driver dominant time Out (TXD DTO): data rates down to 9.2kbps
Thermal shutdown protection (TSD)
Receiver common mode input voltage: ±30V
Typical loop delay: 110ns
Junction temperatures from –55°C to 150°C

Applications Of TCAN1043GDRQ1
12V or 24V System applications
Automotive and transportation
– Advanced driver assistance system (ADAS)
– Infotainment
– Cluster
– Body electronics and lighting
