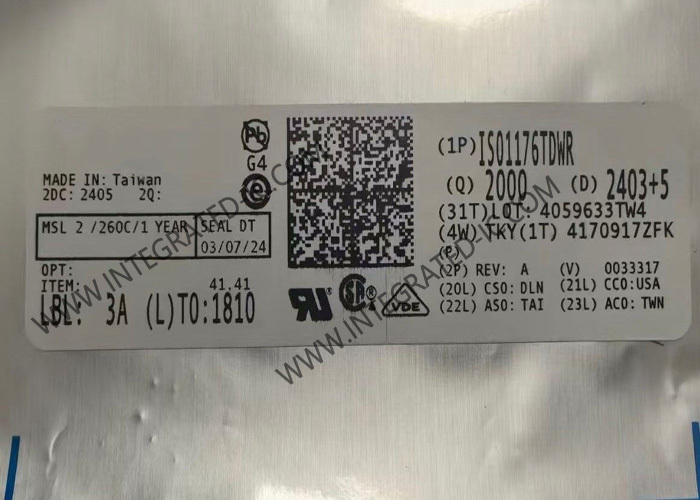

ISO1176TDWR Integrated Circuit Chip 2500Vrms Isolated Differential Line Transceiver

ISO1176TDWR Integrated Circuit Chip 2500Vrms Isolated Differential Line Transceiver

Product Overviews Of ISO1176TDWR

ISO1176TDWR is an isolated differential line transceiver with integrated oscillator outputs that provide the primary voltage for an isolation transformer.
ISO1176TDWR is ideal for long transmission lines because the ground loop is broken to allow the device to operate with a much larger common-mode voltage range.

Specification Of ISO1176TDWR

Features Of ISO1176TDWR

Signaling Rates up to 40 Mbps
Easy Isolated Power Design with Integrated Transformer Driver
Typical Efficiency > 60% (I LOAD = 100 mA) - see SLUU471
Differential Output exceeds 2.1 V (54-Ω Load)
Low Bus Capacitance 10 pF (Maximum)
Fail-safe Receiver for Bus Open, Short, or Idle
50-kV/µs Typical Transient Immunity

Applications Of ISO1176TDWR
Profibus®
Factory Automation
Networked Sensors
Motor/motion Control
HVAC and Building Automation Networks
Networked Security Stations
