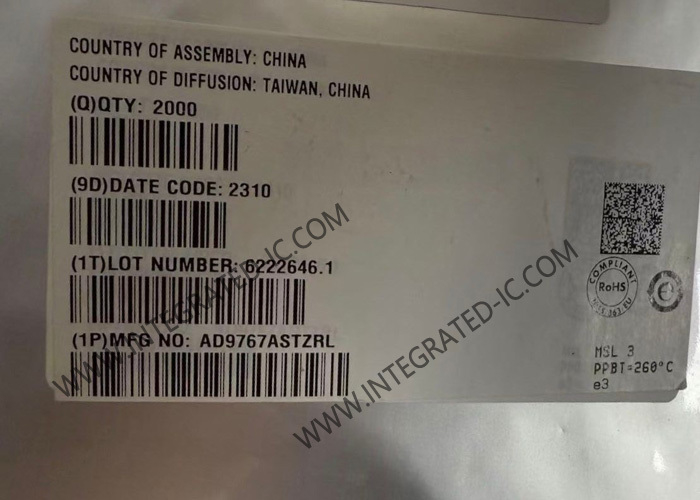

Product Description Of AD9767ASTZRL
AD9767ASTZRL is dual-port, high speed, 2-channel, 14-bit CMOS DACs. Each part integrates two high quality TxDAC+® cores, a voltage reference, and digital interface circuitry into a small 48-lead LQFP. The AD9767ASTZRL offer exceptional ac and dc performance while supporting update rates of up to 125 MSPS.
Specifications Of AD9767ASTZRL
14 bit
125 MS/s
2 Channel
35 ns
Current
Parallel
5 V
5 V
- 40 C
+ 85 C
DNL - Differential Nonlinearity:
+/- 1 LSB
INL - Integral Nonlinearity:
+/- 1.5 LSB
Moisture Sensitive:
Yes
Number of Converters:
2 Converter
Pd - Power Dissipation:
450 mW
Supply Voltage - Max:
5.5 V
Supply Voltage - Min:
3 V
Unit Weight:
181.700 mg
Features Of AD9767ASTZRL
10-/12-/14-bit dual transmit digital-to-analog converters (DACs)
125 MSPS update rate
Excellent SFDR to Nyquist @ 5 MHz output: 75 dBc
Excellent gain and offset matching: 0.1%
Fully independent or single-resistor gain control
Dual-port or interleaved data
On-chip 1.2 V reference
5 V or 3.3 V operation
Power dissipation: 380 mW @ 5 V
Power-down mode: 50 mW @ 5 V
48-lead LQFP
Applications Of AD9767ASTZRL
Communications
Base stations
Digital synthesis
Quadrature modulation
3D ultrasound
