MX23A26NF1 Connectors Compact Type Low-profiled Waterproof Automotive Connectors
MX23A26NF1 Connectors Compact Type Low-profiled Waterproof Automotive Connectors
Description
Part Number:
MX23A26NF1
Pitch::
2.5 Mm (0.098 In)
Gender::
Pin (Male)
Wire Gauge Min::
22 AWG
Wire Gauge Max::
16 AWG
Current Rating::
3 A
MX23A26NF1 Connectors Compact Type Low-profiled Waterproof Automotive Connectors
Product Description Of MX23A26NF1

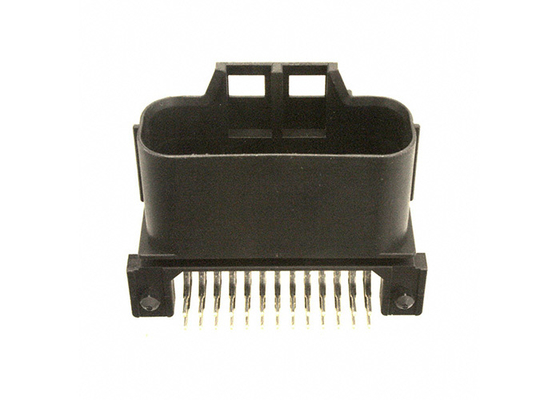

MX23A26NF1 connector is a compact, low-profile, waterproof connector that can be used in a wide range of waterproof equipment including automobiles, motorcycles and other outdoor equipment.
This connector has high environmental capability with a waterproof structure consisting of a seal ring in its mating area and a grommet in its wire insertion area for full protection against water. Reverse type pin connector (with pins facing up) is also available in consideration of mounting flexibility.
Specifications Of MX23A26NF1
Headers
26 Position
2.5 mm (0.098 in)
Pin (Male)
Solder Pin
Tin
22 AWG
16 AWG
Black
Contact Gender:
Pin (Male)
Contact Material:
Copper Alloy
Current Rating:
3 A
Insulation Resistance:
100 MOhms
Length:
44 mm
Material:
Polybutylene Terephthalate (PBT)
Maximum Operating Temperature:
+ 125 C
Minimum Operating Temperature:
- 40 C
Mounting Angle:
Right Angle
Number of Rows:
2 Row
Outside Diameter:
1.6 mm to 2.2 mm
Wire Gauge Range:
22 AWG to 16 AWG
Unit Weight:
17.532 g
Features Of MX23A26NF1
Low profiled type with board mounting height of 18.3mm and socket connector height of 22.2mm max.
Double fin structure with high reliability is adopted for socket contact and large chamfer is prepared in the front-edge side to prevent grommet from damaging.
Incomplete insertion of socket contact into its housing can be detected with the front cap mounting process.
Full water poof grommet is used for socket contact crimping area in order to reduce size.
Water protection seal ring is used in connector’s mating area. It realizes full protection from hands touching on insulator wall.
Reverse type pin connector (with pins facing up) is also available.
