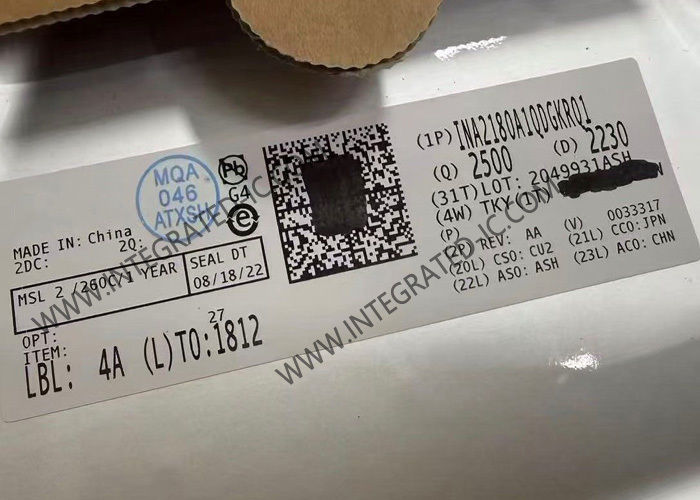

INA2180A1QDGKRQ1 Integrated Circuit Chip 350kHz Current Sense Amplifier VSSOP8

INA2180A1QDGKRQ1 Integrated Circuit Chip 350kHz Current Sense Amplifier VSSOP8​

Product Overviews Of INA2180A1QDGKRQ1

INA2180A1QDGKRQ1 Current Sense Amplifiers are designed for cost-optimized applications. INA2180A1QDGKRQ1 is part of a family of current-sense amplifiers (also called current-shunt monitors) that sense voltage drops across current-sense resistors at common-mode voltages from –0.2 V to +26 V, independent of the supply voltage.
INA2180A1QDGKRQ1 integrate a matched resistor gain network in four, fixed-gain device options: 20 V/V, 50 V/V, 100 V/V, or 200 V/V. This matched gain resistor network minimizes gain error and reduces the temperature drift.

Specification Of INA2180A1QDGKRQ1

Features Of INA2180A1QDGKRQ1

Common-mode range (VCM): –0.2 V to +26 V
High bandwidth: 350 kHz
Offset voltage:
±150 µV (maximum) at VCM = 0 V
±500 µV (maximum) at VCM = 12 V
Output slew rate: 2 V/µs
Accuracy:
±1% gain error (maximum)
1-µV/°C offset drift (maximum)
Gain options: 20 V/V
Quiescent current: 260 µA maximum

Applications Of INA2180A1QDGKRQ1
Motor control
Battery monitoring
Power management
Lighting control
Overcurrent detection
