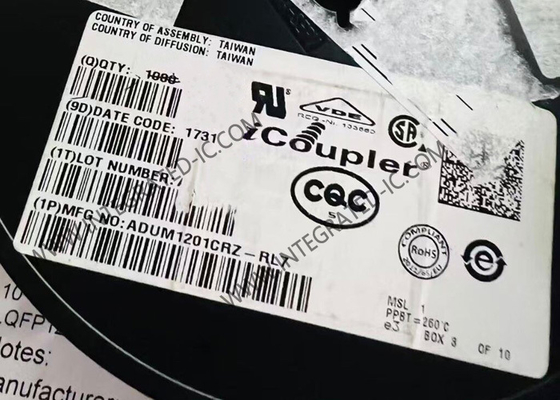

ADUM1201CRZ Integrated Circuit Chip 25 Mb/s Dual-Channel Digital Isolators SOIC-8
ADUM1201CRZ Integrated Circuit Chip 25 Mb/s Dual-Channel Digital Isolators SOIC-8
Description
Part Number:
ADUM1201CRZ
Number Of Channels::
2 Channel
Data Rate::
25 Mb/s
Isolation Voltage::
2500 Vrms
Supply Voltage - Max::
5.5 V
Supply Voltage - Min::
2.7 V
ADUM1201CRZ Integrated Circuit Chip 25 Mb/s Dual-Channel Digital Isolators SOIC-8
Product Description Of ADUM1201CRZ
ADUM1201CRZ is a dual-channel, digital isolator with 1/1 channel directionality. Combining high speed CMOS and monolithic transformer technologies, these isolation components provide outstanding performance characteristics superior to alternatives, such as optocouplers.
Specification Of ADUM1201CRZ
2 Channel
Unidirectional
25 Mb/s
2500 Vrms
Magnetic Coupling
5.5 V
2.7 V
6.3 mA
45 ns
- 40 C
+ 105 C
Maximum Fall Time:
3 ns (Typ)
Maximum Rise Time:
3 ns (Typ)
Operating Supply Voltage:
5.5 V
Pulse Width:
40 ns
Unit Weight:
540 mg
Features Of ADUM1201CRZ
Narrow body, RoHS-compliant, SOIC 8-lead package
Low power operation
Bidirectional communication
3 V/5 V level translation
High temperature operation: 125°C
High data rate: dc to 25 Mbps (NRZ)
Precise timing characteristics
High common-mode transient immunity: >25 kV/μs
Automotive versions qualified per AEC-Q100
Applications Of ADUM1201CRZ
Size-critical multichannel isolation
SPI interface/data converter isolation
RS-232/RS-422/RS-485 transceiver isolation
Digital field bus isolation
Hybrid electric vehicles, battery monitor, and motor drive
