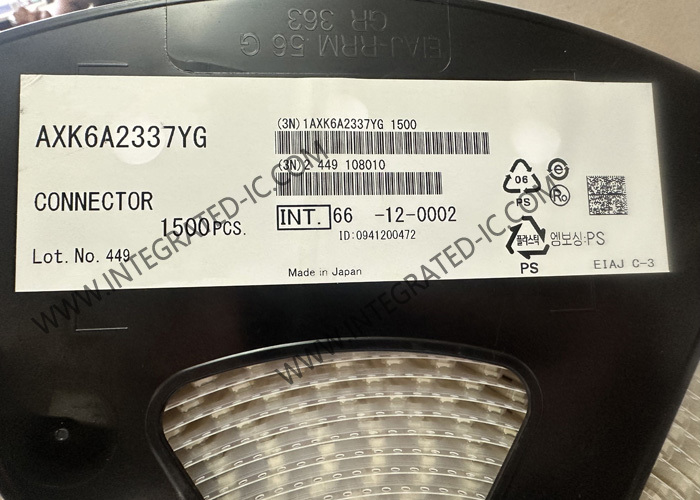

AXK6A2337YG Connectors P5K Header 120POS Narrow Pitch Connector

AXK6A2337YG Connectors P5K Header 120POS Narrow Pitch Connector
AXK6A2337YG Connectors P5K Header 120POS Narrow Pitch Connector AXK6A2337YG Connectors P5K Header 120POS Narrow Pitch Connector

Large Image :  AXK6A2337YG Connectors P5K Header 120POS Narrow Pitch Connector

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AXK6A2337YG
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 120POS
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

AXK6A2337YG Connectors P5K Header 120POS Narrow Pitch Connector

Description
Part Number: AXK6A2337YG Series: P5K
Number Of Positions: 120 Connector Type: Header, Outer Shroud Contacts
Pitch: 0.020" (0.50mm) Number Of Rows: 2

AXK6A2337YG Connectors P5K Header 120POS Narrow Pitch Connector​



Product Overviews Of AXK6A2337YG

AXK6A2337YG (Board to Board Connector) is a P5K Header, Narrow Pitch Connector for board to FPC.


Specification Of AXK6A2337YG

Item Specifications
Part Number AXK6A2337YG
Products Name P5K
Product details Header
Connector Type BOARD-TO-BORAD
Piece Type 2 Pieces type (Header)
Socket/Header Header
Applications Mobile devices, Industrial equipment
Terminal pitch (mm) 0.5
Number of pins 120
Mated height (mm) 3.0mm
Soldering terminals without
Positioning bosses with
Body length (L mm) 33.20
Body Height (H mm) 2.40
Short width (mm) 4.60
Recommended PC board pattern Width (mm) 5.60
Rated current 0.5A/pin contact (Max. 10A at total pin contacts)
Dielectric strength 150V AC for 1min.
Insulation resistance (Min.MΩ) (Initial) 1000
Contact resistance (Max.mΩ) 60
Insertion and removal life (times) 50
Molded portion material Heat-resistant resin (UL94V-0)
Contact and Post Material Copper alloy
Surface treatment material Base: Ni plating Surface: Au plating


Features Of AXK6A2337YG

Mated heights of 3.0 to 9.0 mm supported with " TOUGH CONTACT " construction provides resistant to various environmental conditions.


Applications Of AXK6A2337YG
Mobile devices
Industrial equipment
