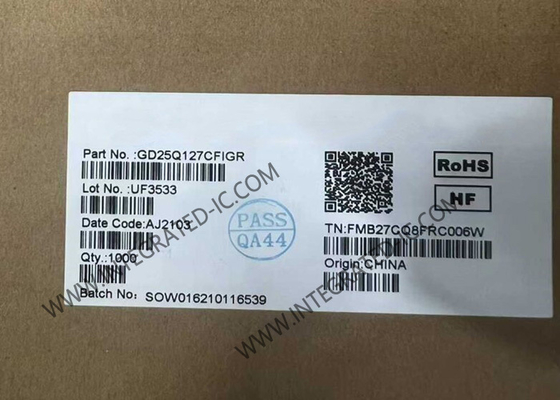

GD25Q127CFIGR Memory IC Chip 128Mbit 3.3V Uniform Sector Serial NOR Flash Memory
GD25Q127CFIGR Memory IC Chip 128Mbit 3.3V Uniform Sector Serial NOR Flash Memory
Description
Part Number:
GD25Q127CFIGR
Memory Size::
128 Mbit
Supply Voltage - Min::
2.7 V
Supply Voltage - Max::
3.6 V
Active Read Current - Max::
27 MA
Maximum Clock Frequency::
104 MHz
GD25Q127CFIGR Memory IC Chip 128Mbit 3.3V Uniform Sector Serial NOR Flash Memory
Product Description Of GD25Q127CFIGR
GD25Q127CFIGR (128M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), and I/O3 (HOLD#/ RESET#). The Dual I/O data is transferred with speed of 208Mbits/s and the Quad I/O & Quad output data is transferred with speed of 416Mbits/s
Specification Of GD25Q127CFIGR
128 Mbit
2.7 V
3.6 V
27 mA
SPI
104 MHz
16 M x 8
8 bit
- 40 C
+ 85 C
Speed:
104 MHz
Features Of GD25Q127CFIGR
128M-bit Serial Flash
16384K-byte
256 bytes per programmable page
Standard, Dual, Quad SPI
Standard SPI: SCLK, CS#, SI, so, WP#, HOLD#/ RESET#
Dual SPI: SCLK, CS#, I00, IO1, WP#, HOLD#/ RESET#
Quad SPI: SCLK, CS#, 100, I01, lO2, 103
High Speed Clock Frequency
104MHz for Standard and Dual SPI fast read with 30PF load
Dual I/0 Data transfer up to 208Mbits/s
Quad /0 Data transfer up to 416Mbits/s
Software/Hardware Write Protection
Write protect allportion of memory via sofware
Enable/Disable protection with WP# Pin
Top/Bottom Block protection
Allows XIP (execute in place) Operation
Continuous Read With 8/16/32/64-byte Wrap
Minimum 100,000 Program/Erase Cycles, Data Retention
20-year data retention typical
Fast Program/Erase Speed
Page Program time: 0.5ms typical
Sector Erase time: 50ms typical
Block Erase time: 0.16/0.3s typical
Chip Erase time: 50s typical
Flexible Architecture
Uniform Sector of 4K byte
Uniform Block of 32/64K byte
Low Power Consumption
20μA typical standby current
1μA typical power down current
Advanced Security Features
128-bit Unique ID for each device
3x1024-Byte Security Registers With OTP Locks
Discoverable parameters (SFDP) register
Single Power Supply Voltage
Full voltage range: 2.7~3.6V
