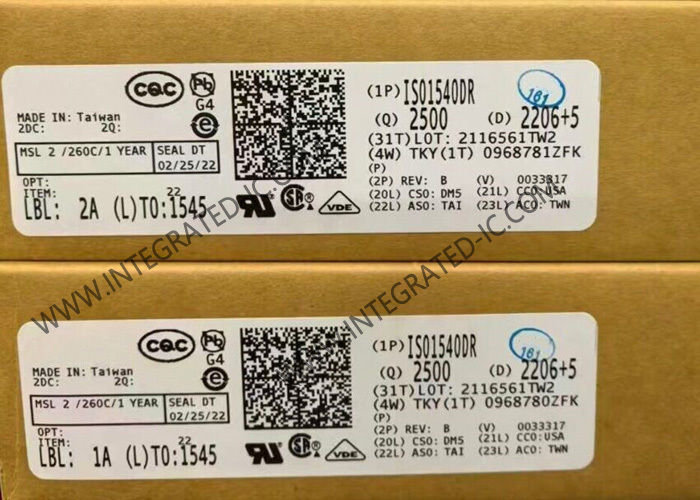

ISO1540DR Integrated Circuit Chip 2500Vrms Low Power Bidirectional I2C Isolators

ISO1540DR Integrated Circuit Chip 2500Vrms Low Power Bidirectional I2C Isolators​

Product Overviews Of ISO1540DR

ISO1540DR is low-power, bidirectional isolators that are compatible with I2C interfaces. These ISO1540DR have logic input and output buffers that are separated Capacitive Isolation technology using a silicon dioxide (SiO2) barrier. When used with isolated power supplies, these devices block high voltages, isolate grounds, and prevent noise currents from entering the local ground and interfering with or damaging sensitive circuitry.

Specification Of ISO1540DR

Features Of ISO1540DR

Isolated bidirectional, I2C compatible, communication
Supports up to 1-MHz operation
3-V to 5.5-V supply range
Open-drain outputs With 3.5-mA Side 1 and 35-mA Side 2 sink current capability
–40°C to +125°C operating temperature
±50-kV/µs transient immunity (Typical)
HBM ESD protection of 4 kV on all pins; 8 kV on bus pins

Applications Of ISO1540DR
Isolated I2C buses
SMBus and PMBus interfaces
Open-drain networks
Motor control systems
Battery management
I2C level shifting
