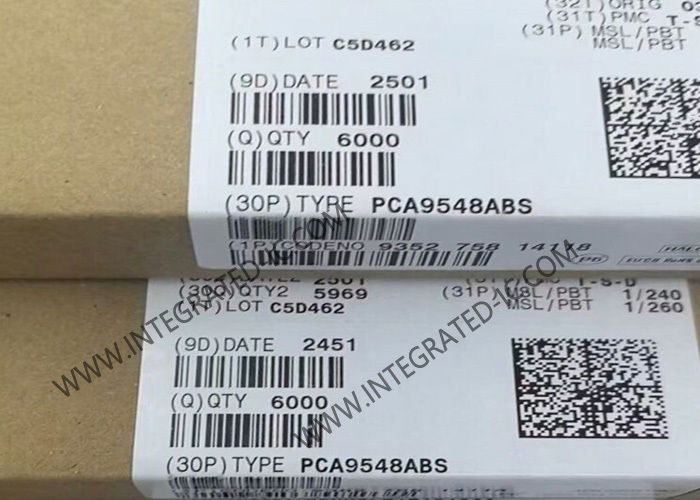

PCA9548ABS Integrated Circuit Chip 8-Channel I2C-Bus Switch With Reset

PCA9548ABS Integrated Circuit Chip 8-Channel I2C-Bus Switch With Reset

Product Description Of PCA9548ABS
PCA9548ABS is an octal bidirectional translating switch controlled via the I2C-bus. The SCL/SDA upstream pair fans out to eight downstream pairs, or channels. Any individual SCx/SDx channel or combination of channels can be selected, determined by the contents of the programmable control register.

Specifications Of PCA9548ABS

Features Of PCA9548ABS
1-of-8 bidirectional translating switches
I2C-bus interface logic; compatible with SMBus standards
Active LOW reset input
Three address pins allowing up to eight devices on the I2C-bus
Channel selection via I2C-bus, in any combination
Power-up with all switch channels deselected
Low Ron switches
Allows voltage level translation between 1.8 V, 2.5 V, 3.3 V and 5 V buses
No glitch on power-up
Supports hot insertion
Low standby current
Operating power supply voltage range of 2.3 V to 5.5 V
6 V tolerant inputs
0 Hz to 400 kHz clock frequency
ESD protection exceeds 2000 V HBM per JESD22-A114 and 1000 V CDM per JESD22-C101
Latch-up testing is done to JEDEC Standard JESD78 which exceeds 100 mA
