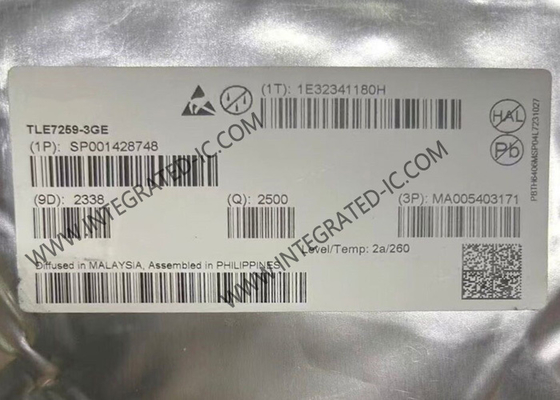

TLE7259-3GE Integrated Circuit Chip Automotive LIN Transceivers For Local Interconnect Network

TLE7259-3GE Integrated Circuit Chip Automotive LIN Transceivers For Local Interconnect Network
TLE7259-3GE Integrated Circuit Chip Automotive LIN Transceivers For Local Interconnect Network

Large Image :  TLE7259-3GE Integrated Circuit Chip Automotive LIN Transceivers For Local Interconnect Network

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TLE7259-3GE
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: DSO-8
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

TLE7259-3GE Integrated Circuit Chip Automotive LIN Transceivers For Local Interconnect Network

Description
Part Number: TLE7259-3GE Supply Voltage - Max:: 40 V
Supply Voltage - Min:: 5 V Operating Supply Current:: 2.2 A
Minimum Operating Temperature:: - 40 C Maximum Operating Temperature:: + 150 C

TLE7259-3GE Integrated Circuit Chip Automotive LIN Transceivers For Local Interconnect Network



Product Description Of TLE7259-3GE
TLE7259-3GE is a transceiver for the Local Interconnect Network (LIN) with integrated wake-up and protection features. It is designed for in-vehicle networks using data transmission rates from 2.4 kbps to 20 kbps. The TLE7259-3GE operate as a bus driver between the protocol controller and the physical bus of the LIN network. Compliant to all LIN standards and with a wide operational supply range the TLE7259-3GE can be used in all automotive applications.



Specifications Of TLE7259-3GE

40 V

5 V

2.2 A

- 40 C

+ 150 C

Data Rate:

20 kb/s

Moisture Sensitive:

Yes

Number of Channels:

1 Channel

Number of Drivers:

1 Driver

Number of Receivers:

1 Receiver

Operating Supply Voltage:

5 V to 40 V

Propagation Delay Time:

5 us

Unit Weight:

83.310 mg



Features Of TLE7259-3GE
pin compatible predecessor TLE7259-2GE
Transmission rate up to 20 kBaud
Compliant to LIN specification 1.3, 2.0
Very high ESD robustness, +/- 15 kV
Optimized for low (EME)
Optimized for high immunity against EMI
Wake-Up source detection
Very low leakage current on the BUS O/P
3.3V & 5V Compatible Digital I/O Levels
Suitable for 12 V and 24 V board net
VBAT Bus Short Protection & GND Handling



Applications Of TLE7259-3GE
Automotive primary power distribution unit
Automotive secondary power distribution unit
Electronic stability control
